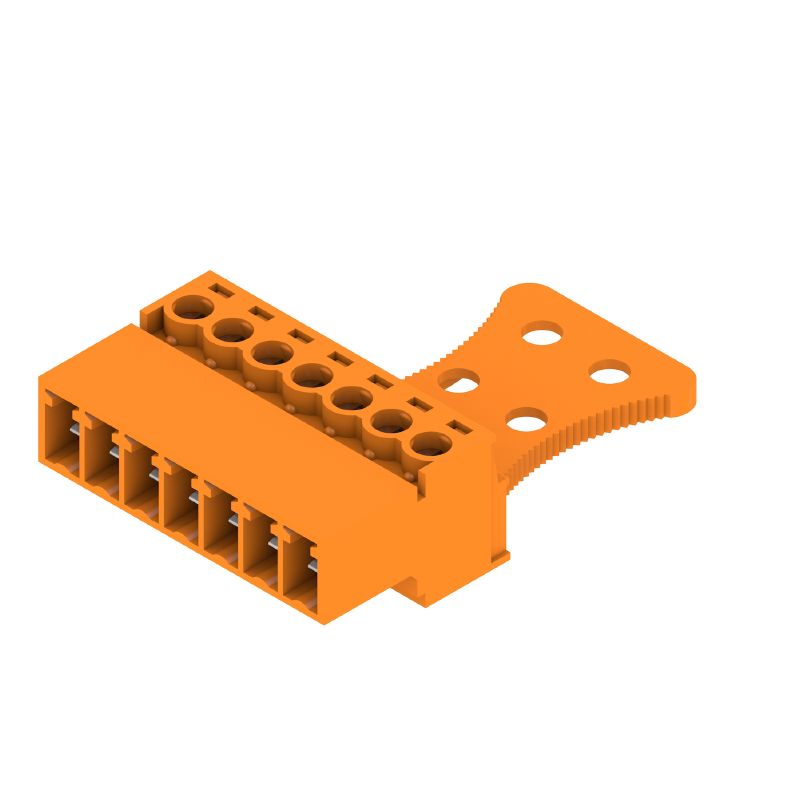

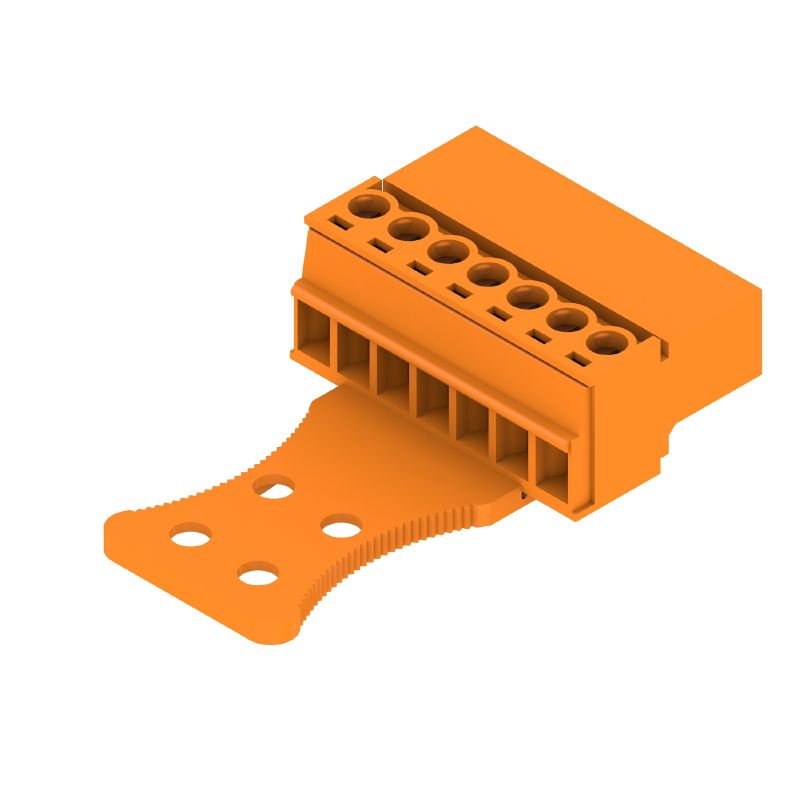

1237030000 - 3.81mm 7-Pole PCB Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile male plug-in connector, perfectly engineered for PCB applications Boasting a 381 mm pitch with 7 poles, it features a reliable clamping yoke connection that accommodates wire sizes of up to 15 mm² Adhering to UL and IEC standards, this connector is rated for voltages of 320 V (UL) and 300 V (IEC), with a maximum current capacity of 175 A Its compact design includes dimensions of 42.

1 mm in depth and 125 mm in height Available in boxes of 50 units, this connector also complies with RoHS regulations, ensuring it meets environmental standards for safety and performance.

Features and Benefits:

•Compliant with RoHS exemption.

•Rated current of 17.5 A and 0.2 - 1.5 mm².

•Touch-safe protection according to DIN VDE standards.

•Can be coded for added security in connections.

•Durability with a rated number of plugging cycles at 25.

Specifications:
