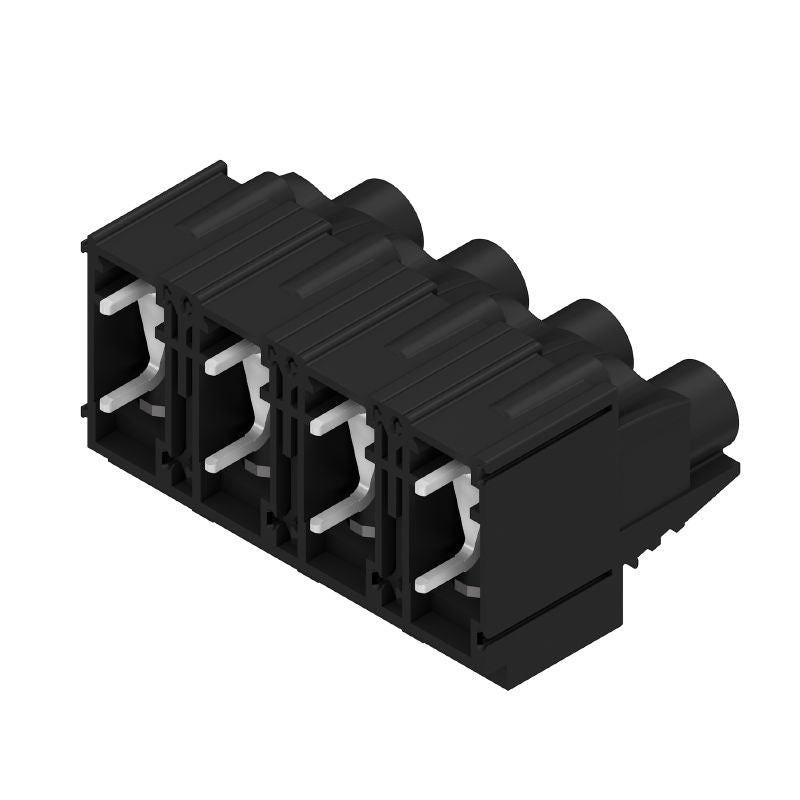

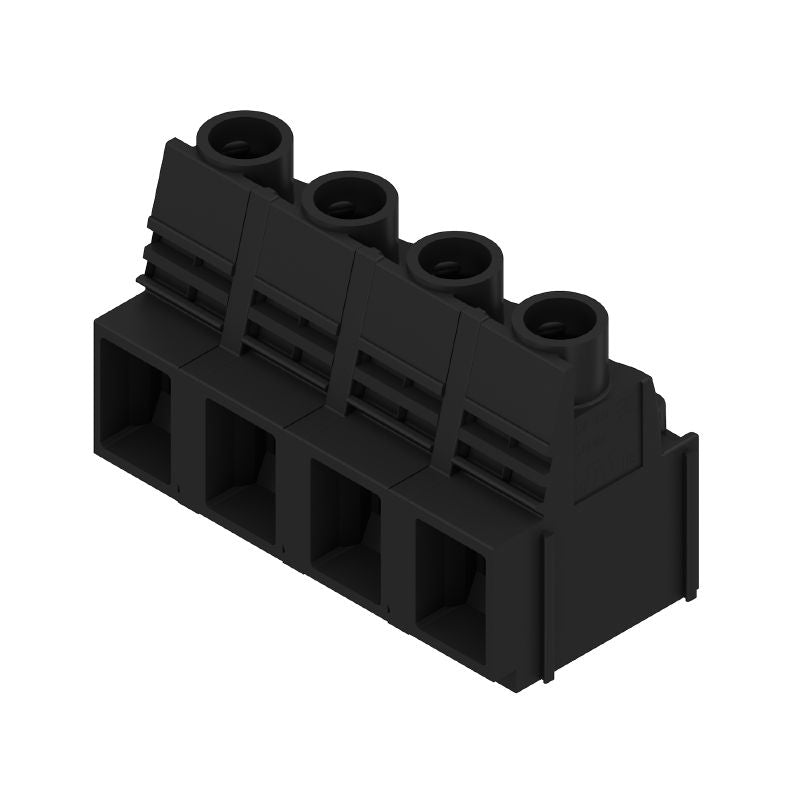

1226390000 - 12.70mm PCB Terminal with 4 Poles and 3.2mm Solder Pin (Pack of 20)
1226390000 - 12.70mm PCB Terminal with 4 Poles and 3.2mm Solder Pin (Pack of 20)
SKU: SKU: 1226390000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this printed circuit board terminal, measuring 1270 mm and configured with four poles set at a 90° angle With solder pin lengths of 32 mm, this terminal features a clamping yoke connection that accommodates a maximum clamping range of 16 mm² Packaged securely in a box, it meets RoHS standards and boasts UL recognition, certified under number E60693, ensuring safety and compliance for your electronic projects.
Features and Benefits:
•Clamping yoke connection.
•Suitable for use with various wire sizes from 0.5 to 16 mm².
•Designed for printed circuit board applications.
Specifications:
| Rated Voltage (IEC) | 1000 V |

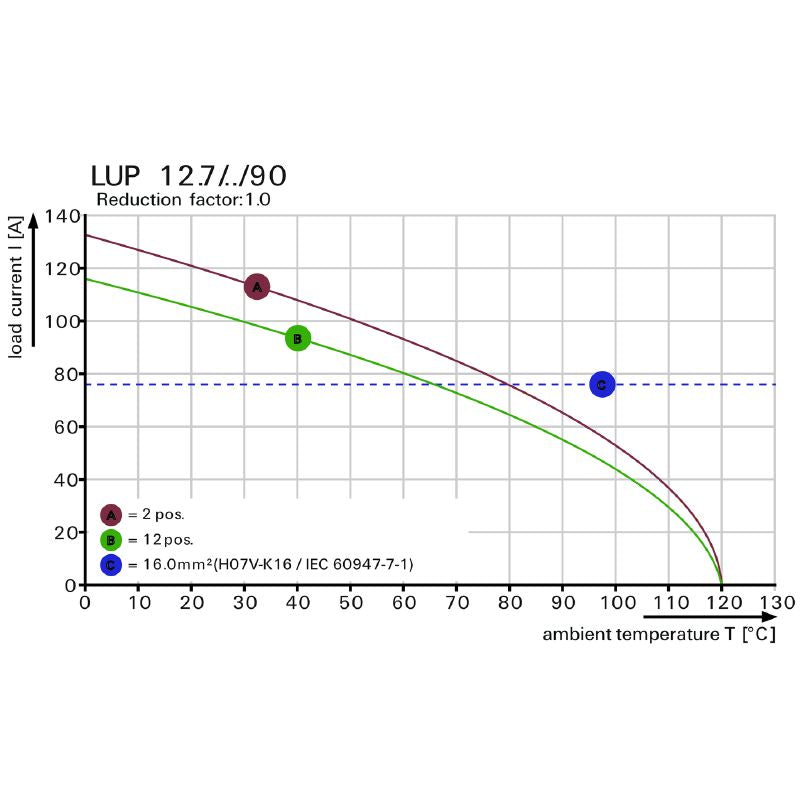

| Rated Current (IEC) | 76 A |
| Solder Pin Length | 3.2 mm |

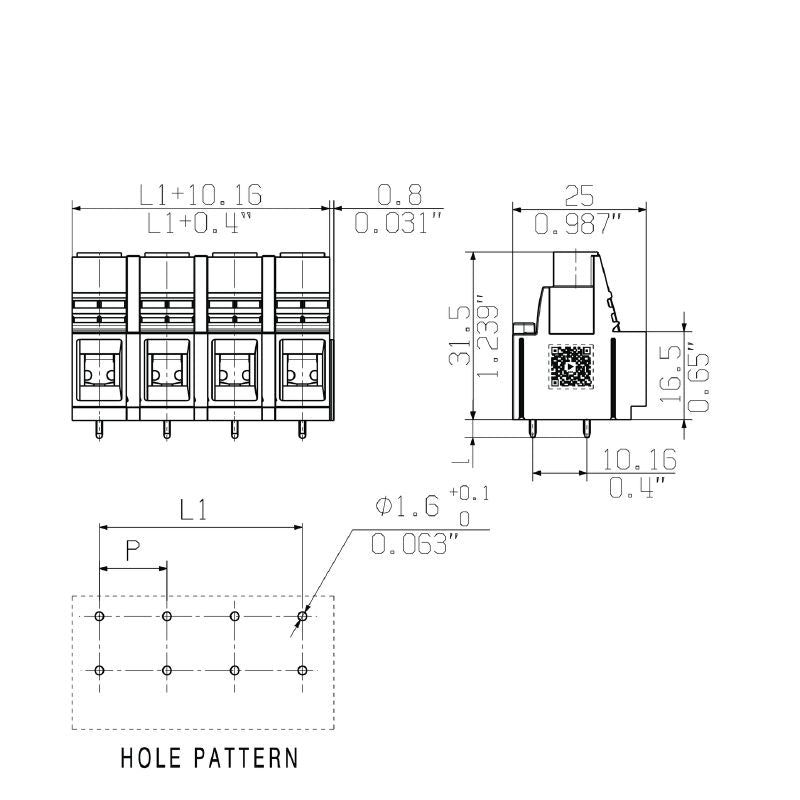

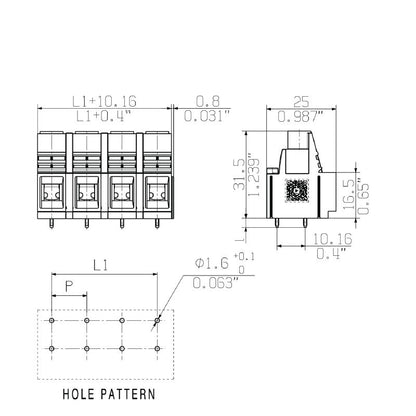

| Height | 34.7 mm |
| Width | 49.06 mm |
| Depth | 25.1 mm |
| Net Weight | 37.312 g |
| Material | Wemid (PA) |
| Color | black |
| Protection Degree | IP20 |
| Operating Temperature (max) | 120 °C |
| Operating Temperature (min) | -50 °C |
| Clamping range, max. | 16 mm² |
| Pin Series Quantity | 1 |
| Number of Poles | 4 |
