1225669 - DREMOMETER CZ Torque Wrench 80-400Nm, Lightweight Aluminum, DIN Certified
1225669 - DREMOMETER CZ Torque Wrench 80-400Nm, Lightweight Aluminum, DIN Certified
SKU: SKU: 1225669
Couldn't load pickup availability
Description:
Introducing the DREMOMETER CZ A+S 16Z torque wrench, engineered for precision and reliability with a pre-set value locking mechanism that safeguards against accidental adjustments Compliant with DIN EN ISO 6789-2:2017 Type II Class A standards, this tool comes with a traceable test certificate, ensuring calibration within a maximum deviation of +/- 3%, which exceeds the standard requirement of +/- 4%.
Constructed from lightweight aluminum alloy, this torque wrench combines strength with easy handling, making it an essential tool for any workshop Depending on your needs, you can access this wrench from both the front and side It promotes clean usage through specific force application methods to enhance accuracy, and for optimal performance, it is recommended to utilize original GEDORE accessories.
Features and Benefits:
•Pre-set value locking and safety device for process reliability.
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A with traceable test certificate.
•Aluminum alloy housing for lightweight yet robust construction.
•Access from front or side depending on the application.
•Max precision under continuous use.
•Easy adjustment with secure button.
•Compliant with traceability standards through DAkkS laboratory.
•Assembly.
•Series assembly.
•Production.
Specifications:

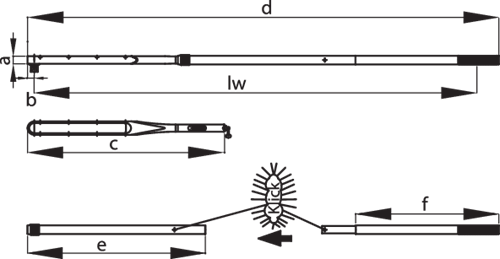

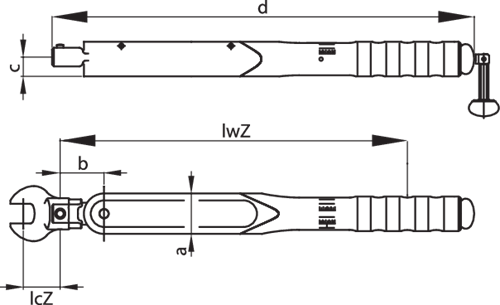

| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 633 mm |
| Distance between housing and centre of drive [mm] | 16 mm |
| Drive type/drive | Drive pin |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Receptacle width [mm] | 16 mm |
| Torque (max.) [lbf·ft] | 300 lbf·ft |
| Torque (min.) [lbf·ft] | 60 lbf·ft |
| Torque (max.) [Nm] | 400 Nm |
| Torque (min.) [Nm] | 80 Nm |
| Torque wrench type | CZ A+S |
| Fixed setting | No |
| Lever length drive side [mm] | 38 mm |
| Lever length handle side [mm] | 595 mm |
| Calibration length | 567 mm |
| Width of head 1 [mm] | 35,0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 32,0 mm |
