1210963 - DREMOMETER 3/4" Torque Wrench with A+S Safety Lock, 155-760 Nm
1210963 - DREMOMETER 3/4" Torque Wrench with A+S Safety Lock, 155-760 Nm
SKU: SKU: 1210963
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

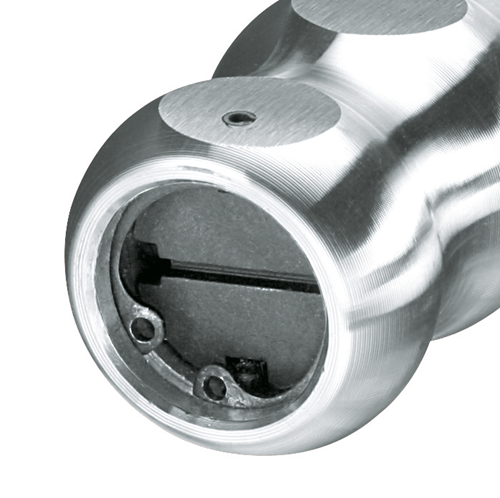

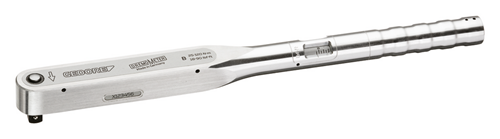

Introducing the DREMOMETER DRL A+S torque wrench, engineered for precision and reliability This innovative tool features a pre-set value locking and safety mechanism (A+S) that safeguards against accidental or unauthorized adjustments, enhancing process dependability Compliant with DIN EN ISO 6789-2:2017 Type II Class A standards, it has been calibrated to meet a maximum permissible deviation of just +/- 3 %, exceeding the industry requirement of +/- 4 %.
Crafted from lightweight yet sturdy aluminium alloy, this wrench is built for the workshop, combining durability with ease of handling Its thoughtful design ensures accurate results, whether used with one or both hands, promoting user safety With a lever mechanism that minimizes wear and tear, this tool guarantees exceptional precision even under continuous use, providing an effortless operation for quick and secure torque tightening.
Features and Benefits:
•Pre-set value locking and safety device eliminates unintentional adjustments.
•Calibrated to a maximum permissible deviation of +/- 3 %.
•Lightweight yet robust aluminum alloy housing.
•High degree of user safety with optimal design.
•Extremely low wear due to reduced forces.
•Long life cycle and durability.
•Controlled screw tightening in various industrial manufacturing areas.
•Suitable for assembly and production applications.
Specifications:
| Total width [mm] | 45 mm |
| Total height [mm] | 35 mm |
| Total length [mm] | 800 mm |
| Distance housing - square drive | 22.5 mm |
| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Tightening direction | Left and right |
| Version | A S Fuse |
| Standard | ISO 1174 |
| Torque (max.) [lbf·ft] | 560 lbf·ft |
| Torque (min.) [lbf·ft] | 115 lbf·ft |
| Torque (max.) [Nm] | 760 Nm |
| Torque (min.) [Nm] | 155 Nm |
| Torque wrench type | A+S DRL |
| Fixed setting | Yes |
| Calibration length | 1290.5 mm |
| Width of head 1 [mm] | 45.0 mm |
| Head height 1 [mm] | 35 mm |

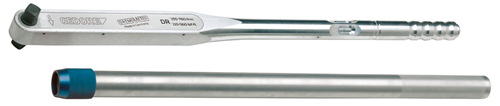

| Length extension tube | 762 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 10 lbf·ft |
| Scale division [Nm] | 10 Nm |
