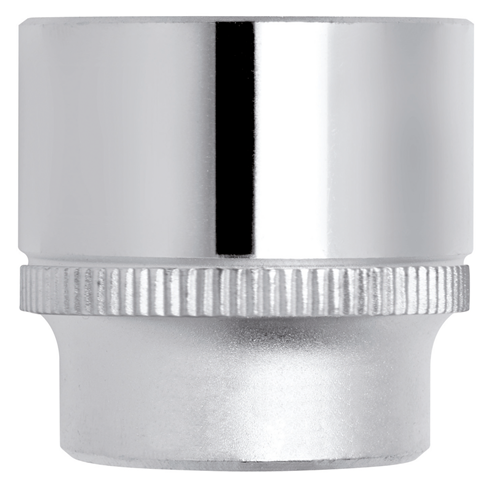

12015 - Hand-Operated Chrome-Plated Tool with Knurled Grip
12015 - Hand-Operated Chrome-Plated Tool with Knurled Grip
SKU: SKU: 12015
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience superior performance with this hand-operated tool featuring a knurled grip for optimum control The drive side boasts a matte satin chrome finish, while the driven end shines with a bright polish Engineered to meet the standards of DIN 3120 - C 12,5 and ISO 1174, it includes a square drive with a ball retention groove for secure engagement Crafted from durable chromium vanadium steel, this tool combines functionality with reliability.
Features and Benefits:
•Hand-operated.
•Knurled grip.
•Matt satin chrome-plated on the drive side.
•Driven end brightly polished.
•Square drive as per DIN 3120 - C 12,5, ISO 1174.
•Ball retention groove.
•Made from chromium vanadium steel.
Specifications:
| Total width [mm] | 22 mm |
| Total length [mm] | 38 mm |
| Net weight [kg] | 0.054 kg |
| Drive mount, square [metric] | 12,5 mm |
| Drive connector square [inch] | 1/2" |
| Standard | DIN 3120 – C 12,5 ISO 1174 |
| Insert-Ø 1 | 20,3 mm |
| Insert-Ø 2 | 22,0 mm |
| Working length | 38,0 mm |
| Material | Chrome-vanadium steel |
| Surface | matt chrome-plated (input side), bright polished (output side) |
| Compliance | compliant |
| Width across flats 1 TX (outside) | E18 |
| Safety | Ball Catching Cricket |
