1195260001 - 550mm Stainless Steel Terminal Box with Multi-Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

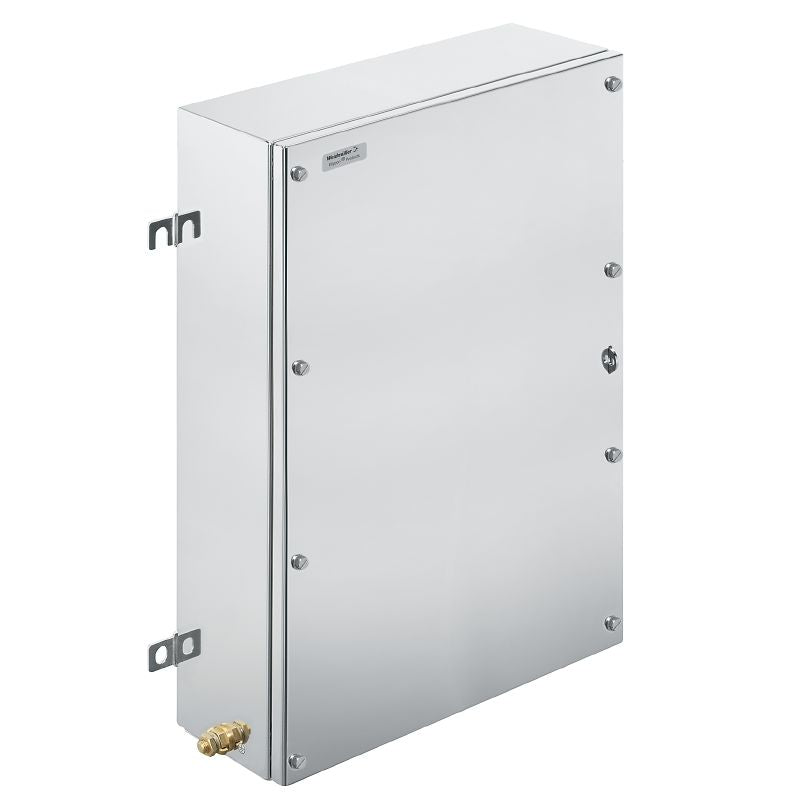

Introducing the KTB MH 553520 S2E1, a robust empty enclosure tailored for terminal boxes, featuring a versatile multi-hinge design Crafted from high-grade stainless steel (14301, 304) and finished with an electropolished silver sheen, this enclosure not only looks sleek but also stands up to challenging conditions Measuring 550 mm in height, 350 mm in width, and 200 mm in depth, it is engineered to support gland plates at the bottom, making it ideal for deployment in demanding environments.

This enclosure is particularly suited for use in explosive risk areas and across various sectors, including oil, gas, and chemical industries.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304).

•Electropolished for a silver finish.

•IP66 protection rating.

•Impact resistance of 10 J (standard version), 7 J (ATEX version).

•Operates in temperature range of -60 °C to 135 °C.

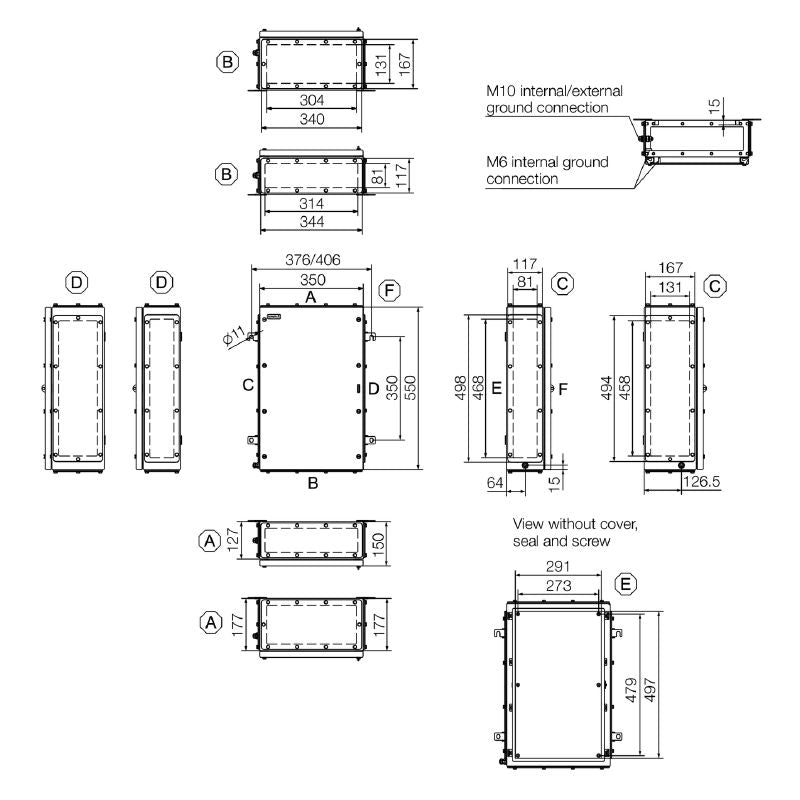

•Access openings measuring 497 mm in height and 291 mm in width.

•Prepared for horizontal and vertical assembly configurations.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
