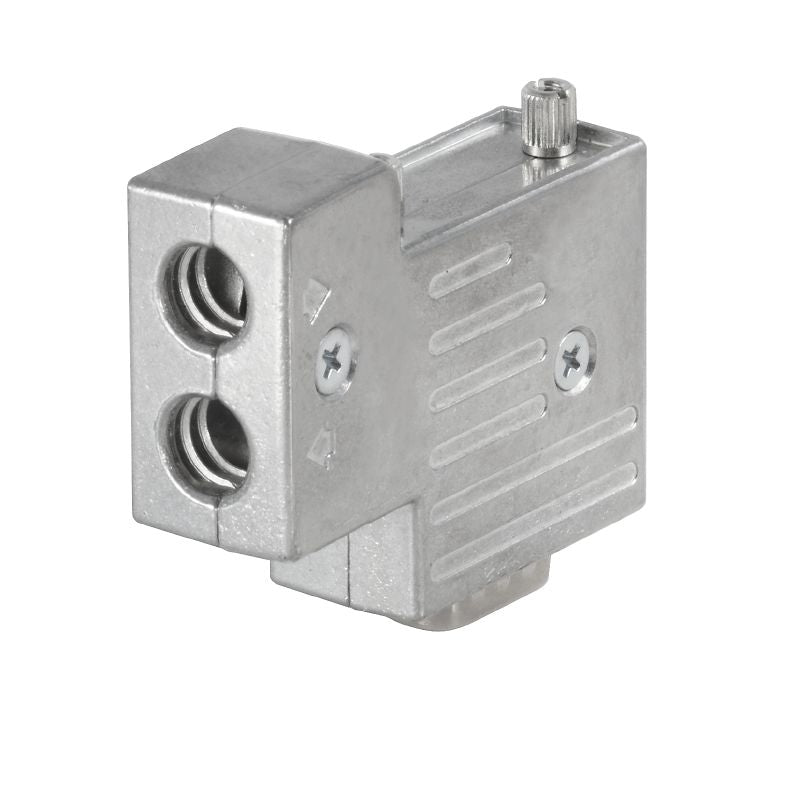

1161890000 - RoHS Compliant D-Sub 9-Pole Connector with Tension Clamp

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PB-DP SUB-D ZF connector, a top-quality component that adheres to RoHS standards, including compliance with exemption 6aI This versatile D-Sub connector features a 9-pole BUS interface, equipped with a tension clamp connection for secure BUS and cable integration With a remarkable data transfer rate of 12 MBit/s, this connector is engineered for efficiency Crafted from durable ZnAl material, it provides a reliable protection rating of IP30 and operates effectively within a temperature range of -20 to +70 degrees Celsius.

Designed for longevity, it can withstand over 200 insertions, ensuring a robust and dependable performance.

Features and Benefits:

•Humidity tolerance of a maximum of 75% at +25°C, non-condensing.

•Interlock designed with UNC4-40 specifications.

•Has a 90° outgoing elbow.

•Plug assignments comply with the PROFIBUS specification.

•Terminating resistor is not available.
