1149600000 - 8-Pole Male PCB Header Connector, 3.2mm Pins, Black Box (Pack of 50)
1149600000 - 8-Pole Male PCB Header Connector, 3.2mm Pins, Black Box (Pack of 50)
SKU: SKU: 1149600000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

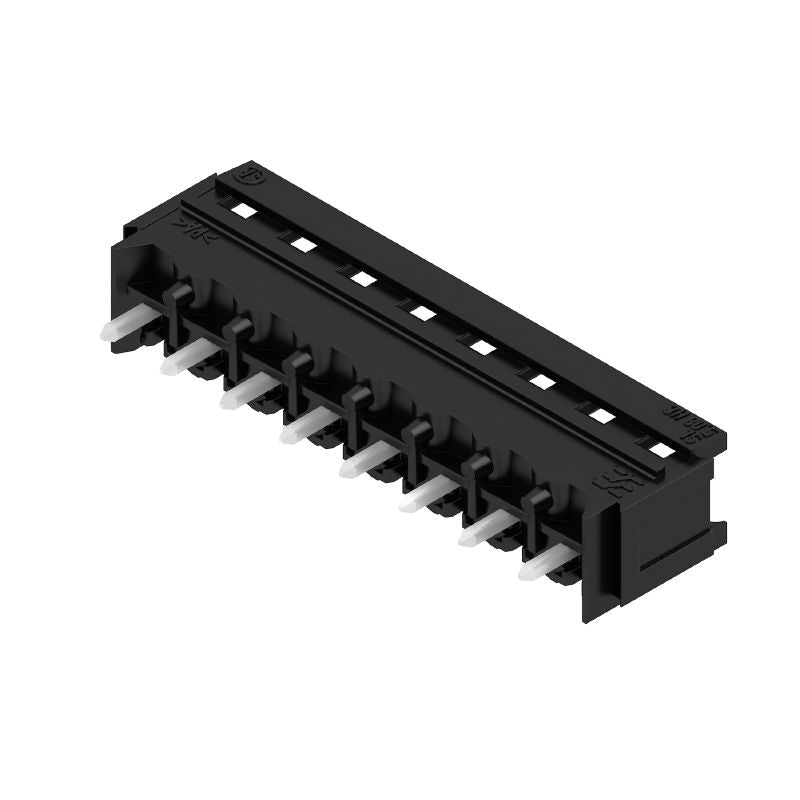

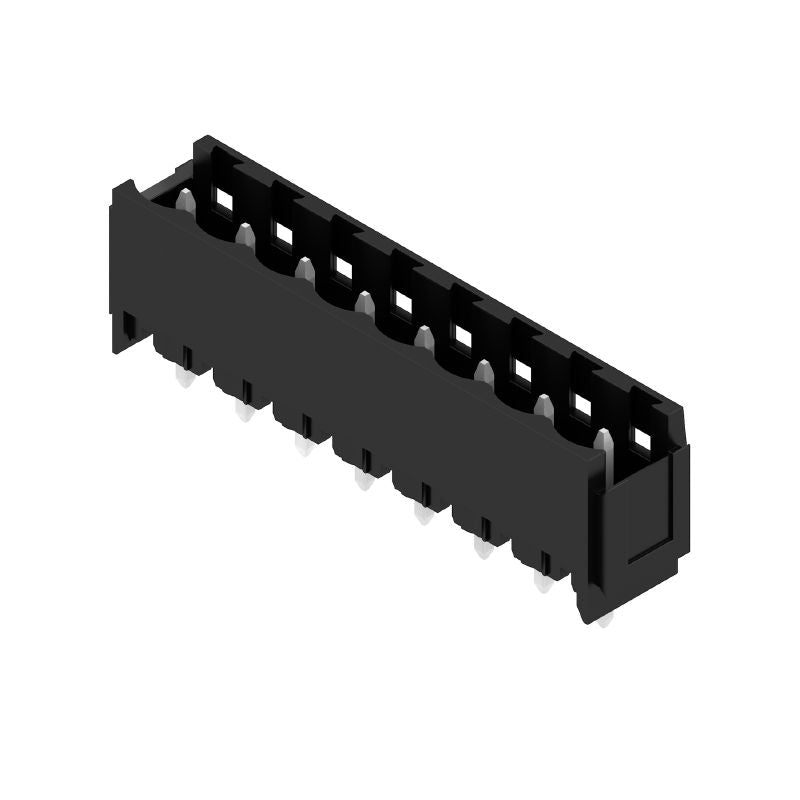

Discover the versatility of this PCB plug-in connector, featuring a male header crafted for through-hole mounting (THT) With 8 poles arranged in a 180° configuration, this connector ensures secure connections The solder pin extends to a length of 32 mm and comes in an elegant black casing It complies with RoHS standards and carries a UL File number, ensuring quality and reliability for your electronic projects.
Features and Benefits:
•Compliant without exemption under RoHS.
•Designed for board connections with THT solder connection.
•Provides touch-safe protection according to various standards.
•Compatible with a variety of mounting requirements.
•Has a low volume resistance of ≤5 mΩ.
Specifications:
| Number of poles | 8 |
| Pitch | 5.08 mm |
| Rated voltage | 400 V / 300 V / 250 V depending on application |

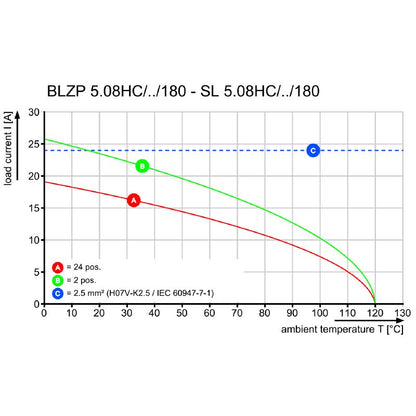

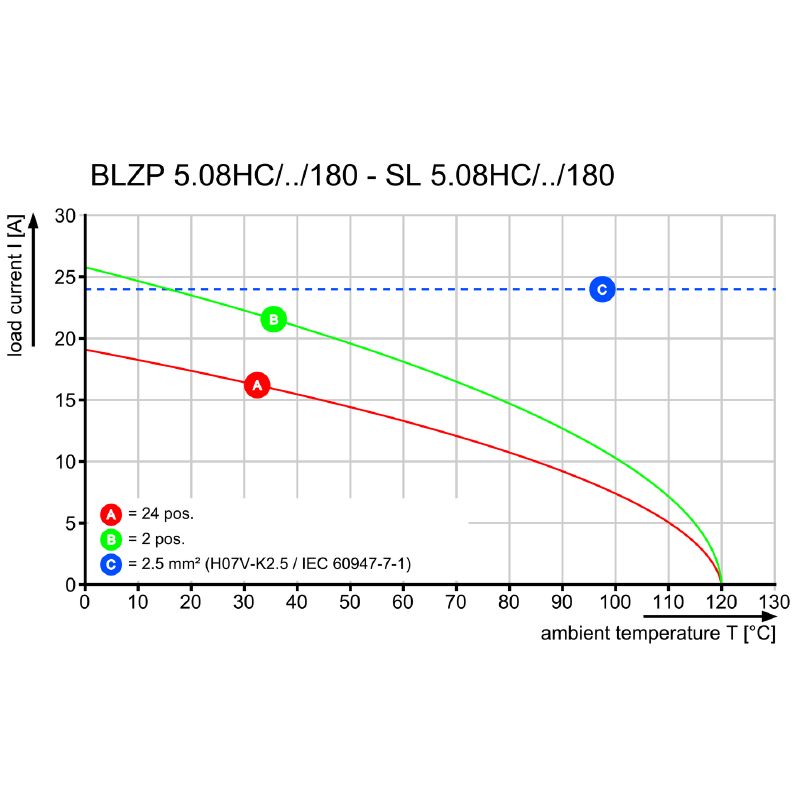

| Rated current | 24 A / 19 A (depending on temperature and number of poles) |
| Solder pin length | 3.2 mm |

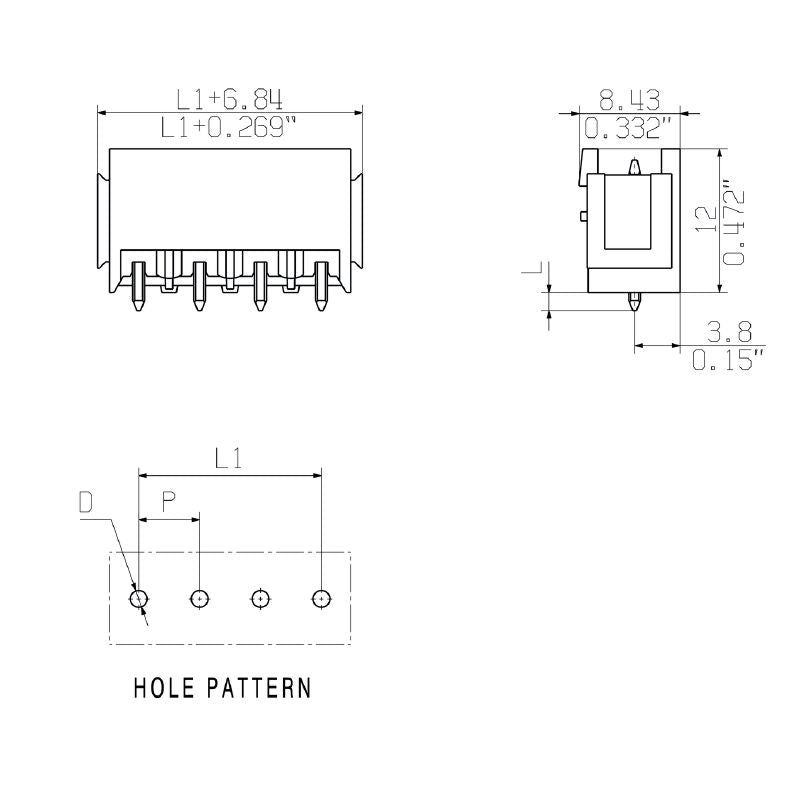

| Depth | 8.43 mm |
| Height | 15.2 mm |
| Width | 42.4 mm |
| Net weight | 3.24 g |
| Operating temperature | -50 °C to 100 °C |
| Storage temperature | -40 °C to 70 °C |
| Insulating material | PA GF |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Protection degree | IP20 |
