1129020000 - RSM-16 PLC with Tension-Clamp Connections for Control Applications

1129020000 - RSM-16 PLC with Tension-Clamp Connections for Control Applications

SKU: 1129020000 Download PDF

Variant:
  • 1129020000 - RSM-16 PLC with Tension-Clamp Connections for Control Applications
Now $410.73
BEFORE   $0.00 Now $410.73
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

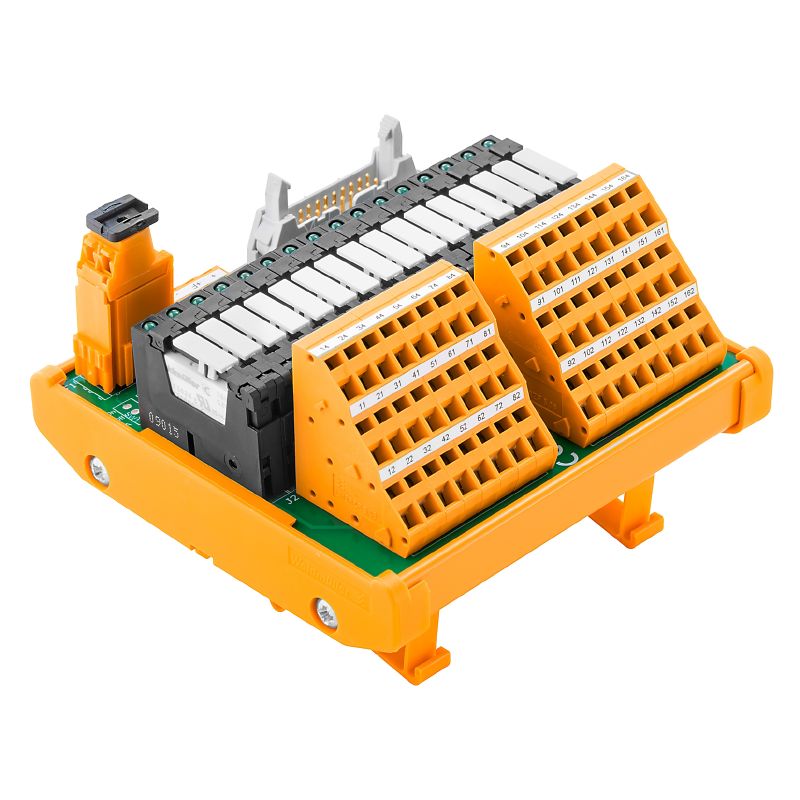

Introducing the RSM-16 PLC C 1CO Z, specifically engineered for various control applications It boasts reliable tension-clamp connections, maximizing operational dependability This model complies with RoHS standards and is equipped with diverse specifications tailored to perform in multiple environments With an emphasis on seamless integration and efficient functionality, this PLC is the ideal choice for your control needs.

Features and Benefits:

    •LED status displays for each relay in green and supply voltage in yellow.

    •Fuse rating of 2.5 A for the power supply.

    •20-pole plug on the control side.

    •Mechanical service life of 5 x 10^6 switching cycles.

    •Tension-clamp connection for secure wiring.

    •Environmental compliance with RoHS and REACH.

Specifications:

 Depth 80 mm
 Height 109 mm
 Width 111 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 24 V DC ± 10%
 Input current 13 mA
 Power rating 0.36 W
 Relay type RSS
 Type of output Potential-free contact
 Rated voltage 250 V AC
 Max. AC continuous current 2.5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/input II
 Overvoltage category input/output III
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.13 mm²
 Stripping length 7.5 mm
