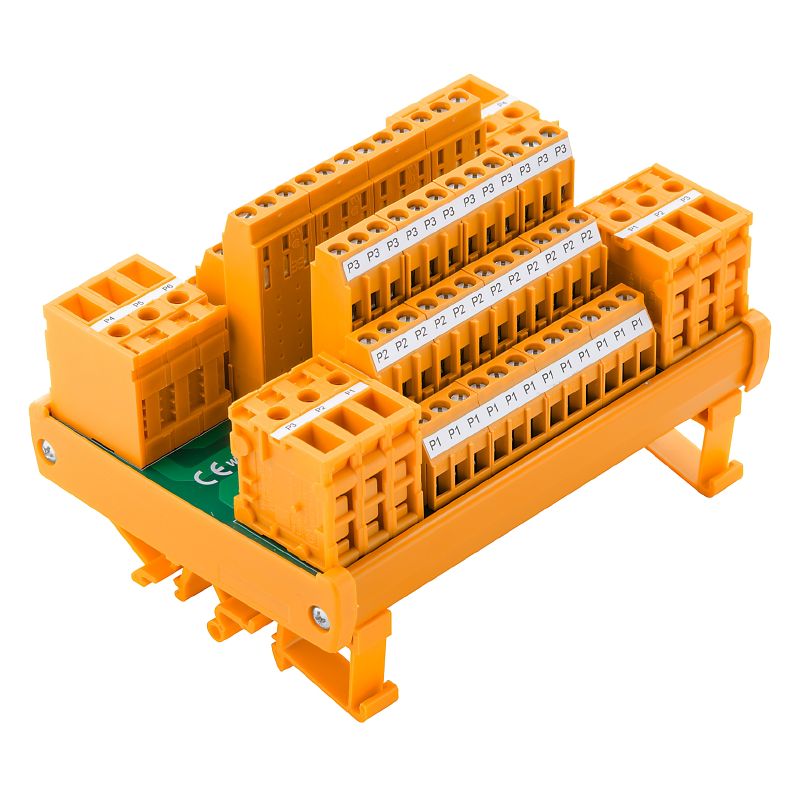

1128130000 - 6-Pin RS VERT Interface for Tension-Clamp Connections

1128130000 - 6-Pin RS VERT Interface for Tension-Clamp Connections

SKU: 1128130000   Download PDF

Select a Variant:
  • 1128130000 - 6-Pin RS VERT Interface for Tension-Clamp Connections
Qty:
Now $189.15   Web pricing policy
BEFORE   $0.00 Now $189.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RS VERT interface, featuring a reliable 6-pin design that employs tension-clamp connections This product adheres to RoHS standards and holds UL certification, demonstrating its commitment to safety and quality With its efficient current ratings, it is well-suited for a wide range of wiring applications, making it a dependable choice for your electrical needs.

Features and Benefits:

    •Compliant with RoHS and UL certifications.

    •Tension-clamp connection for secure attachment.

    •Suitable for a variety of wire cross-sections ranging from AWG 10 to 26.

    •Max current ratings up to 120 A for broad usability.

Specifications:

 Depth 75 mm
 Height 87 mm
 Width 122 mm
 Net weight 264 g
 Maximum current per distributor connection acc. to UL 10 A
 Operating temperature UL, max 25 °C
 Rated voltage U 300 V
 Rated voltage 250 V AC
 Maximum current per potential connection 20 A
 Surge voltage category III
 Pollution severity level 2
 Clamping range, max 6 mm²
 Clamping range, min 0.13 mm²
 Stripping length 7.5 mm
