11233 - SIP Paging Adapter for VoIP with Dual Extensions & 9 User Messages

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

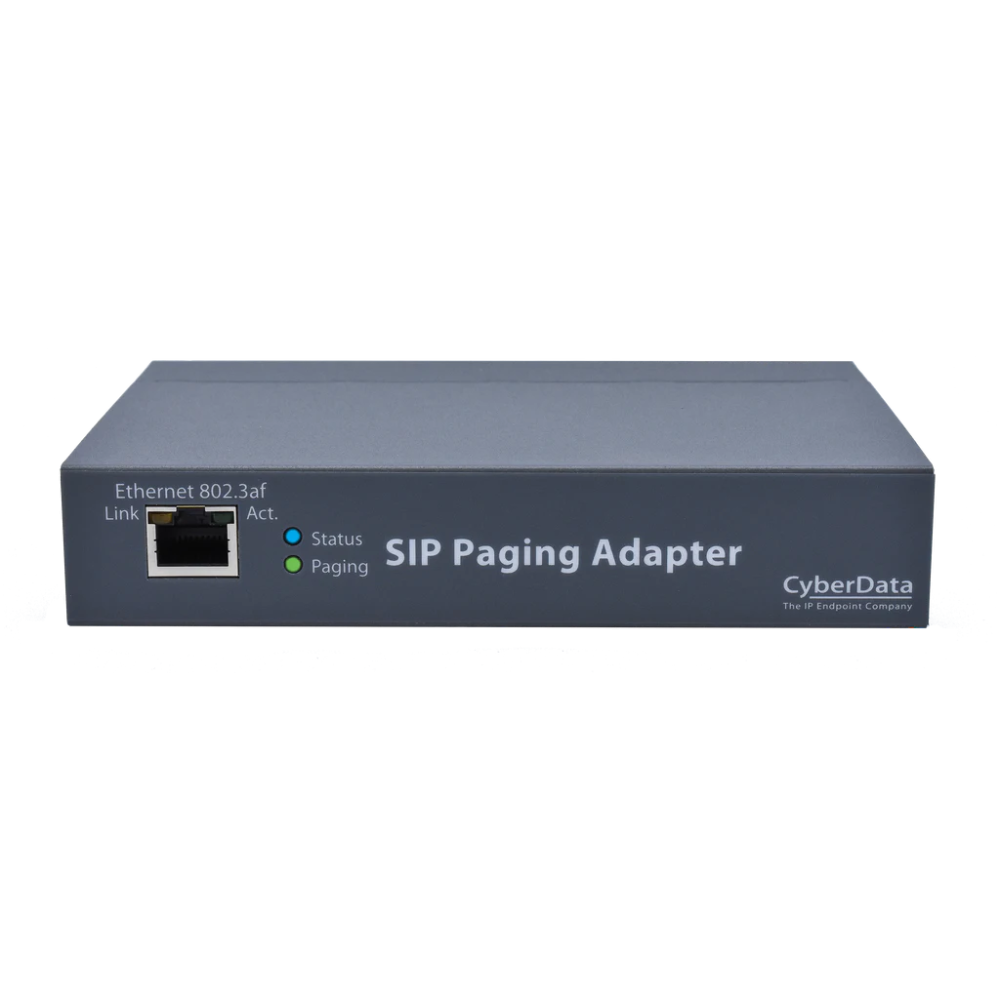

Introducing the CyberData 011233 SIP Paging Adapter, a versatile VoIP solution that seamlessly connects analog IP paging systems with SIP and Multicast audio sources This adapter can be set up to handle two distinct SIP extensions The first extension allows audio from the caller's handset to be transmitted to the analog output Meanwhile, the second extension is designed to activate a bell sound, ideal for use as a night ringer when integrated into a night ring group.

The adapter boasts the ability to store up to 9 custom-uploaded messages, which can be activated via a DTMF command Additionally, it features a line-In input for music on hold (MOH) playback, automatically muting this input during paging or night ring activities and restoring it once the announcement concludes You can play messages using SIP to analog, multicast to analog, or through the HTTP Command Interface, making this device both functional and efficient for your communication needs.

Features and Benefits:

•Two SIP extensions.

•HTTP Command Interface.

•HTTP Web Interface and setup.

•9 user-uploadable page messages.

•10 channel prioritized Multicast ports.

•Built-in diagnostics.

•10k Ohm input for MOH.

•600 Ohm Balanced audio out.

•Unbalanced Line-Out.

•DTMF and programmatic controlled Relay.

•Remote amp fault sensor.

•DTMF pass-through.

•Delayed page support.

•Cisco SRST.

•10/100 802.3af PoE.

Specifications:
