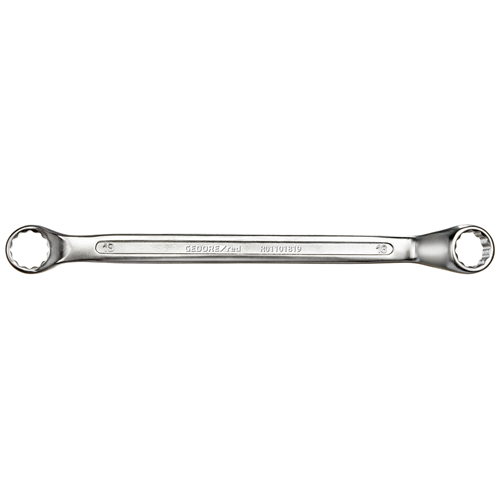

11025 - 355mm Chromium Vanadium Thin Walled Ring Wrench, 5° Offset
11025 - 355mm Chromium Vanadium Thin Walled Ring Wrench, 5° Offset
SKU: SKU: 11025
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This product adheres to multiple industry standards, including DIN 838, ISO 3318, ISO 1085, and ISO 10104 Engineered with a 5° offset, it is made from durable chromium vanadium steel and features a sophisticated matt satin chrome-plated surface.
Features and Benefits:
•Thin walled rings for easier access in tight spaces.
•Made from durable chromium vanadium steel.
•Matt satin chrome-plated finish for a sleek appearance.
Specifications:
| Total width [mm] | 42 mm |
| Total height [mm] | 38 mm |
| Total length [mm] | 355 mm |
| Net weight [kg] | 0.5 kg |
| Version | Thin walled rings |
| Standard | DIN 838 ISO 3318 ISO 1085 ISO 10104 |
| Width of head 1 [mm] | 37.4 mm |
| Width of head 2 [mm] | 41.4 mm |
| Head height 1 [mm] | 13.9 mm |
| Head height 2 [mm] | 14.9 mm |
| Height of offset 1 | 35 mm |
| Height of offset 2 | 35 mm |
| Material | Chrome-vanadium steel |
| Surface | matt satin chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 25 |
| Width across flats 2 [mm] | 28 mm |
| Width across flats [mm] | 25 x 28 mm |
