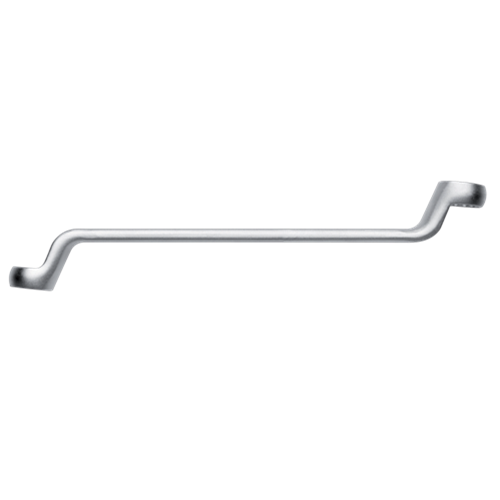

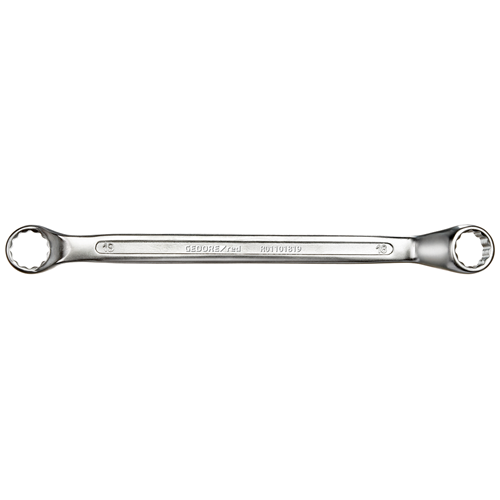

11017 - 5° Offset Chromium Vanadium Steel Rings with Satin Chrome Finish
11017 - 5° Offset Chromium Vanadium Steel Rings with Satin Chrome Finish
SKU: SKU: 11017
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This product adheres to various standards including DIN 838, ISO 3318, ISO 1085, and ISO 10104 It is expertly crafted with a 5° offset design, utilizing thin-walled rings made from chromium vanadium steel The matte satin chrome plating not only enhances its durability but also adds an attractive finish.
Features and Benefits:
•Thin walled ring design for improved access in tight spaces.
•Made from chromium vanadium steel for superior strength.
•Finished with a matt satin chrome plating for a sleek look.
Specifications:
| Total width [mm] | 27 mm |
| Total height [mm] | 32 mm |
| Total length [mm] | 280 mm |
| Net weight [kg] | 0.235 kg |
| Version | Thin walled rings |
| Standard | DIN 838 ISO 3318 ISO 1085 ISO 10104 |
| Width of head 1 [mm] | 26.4 mm |
| Width of head 2 [mm] | 28.4 mm |
| Head height 1 [mm] | 10.8 mm |
| Head height 2 [mm] | 12.1 mm |
| Height of offset 1 | 30 mm |
| Height of offset 2 | 30 mm |
| Material | Chrome-vanadium steel |
| Surface | matt satin chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 17 |
| Width across flats 2 [mm] | 19 mm |
| Width across flats [mm] | 17 x 19 mm |
