1093090500 - 5m M12 to M8 Connecting Line, 3 Poles, PUR Sheath
1093090500 - 5m M12 to M8 Connecting Line, 3 Poles, PUR Sheath
SKU: SKU: 1093090500 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

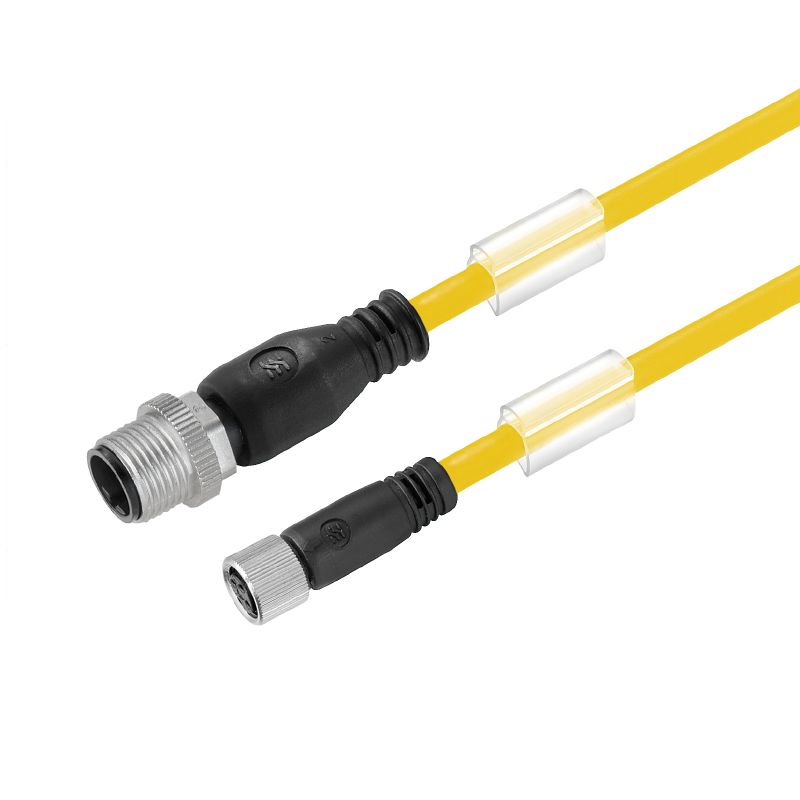

Discover the versatility of this sensor/actuator cable, equipped with an M12 connector on one end and an M8 connector on the other Measuring 5 meters in length, this cable features a 3-pole configuration with a straight pin and socket design Constructed from durable PUR material, this non-halogenated cable is designed for practical applications and is not shielded or fitted with an LED indicator Perfect for your connectivity needs!.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Hydrolysis and microbe resistant.
•Gold-plated contact surface.
•Torsion resistance of 360°/m.
•Suitable for cable carriers.
Specifications:
| Cable length | 5 m |
| Number of poles | 3 |
| Core cross-section | 0.25 mm² |
| Outside diameter | 4.1 mm ± 0.2 mm |
| Insulation resistance | 10^8 Ω |
| Nominal current | 4 A |
| Nominal voltage | 60 V |
| Protection degree | IP67, IP68 when fully mounted, IP65, IP66 |
| Temperature range, moving | -25...80 °C |
| Temperature range, stationary | -40...80 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Plug, left | M12, A-coded, IP69, male contact, straight, Plastic, unshielded |
| Plug, right | M8, IP69, female contact, straight, Plastic, LED, unshielded |
