1087340000 - 11-Pole PCB Connector, 90° Angle, 4 mm² Clamping Range (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

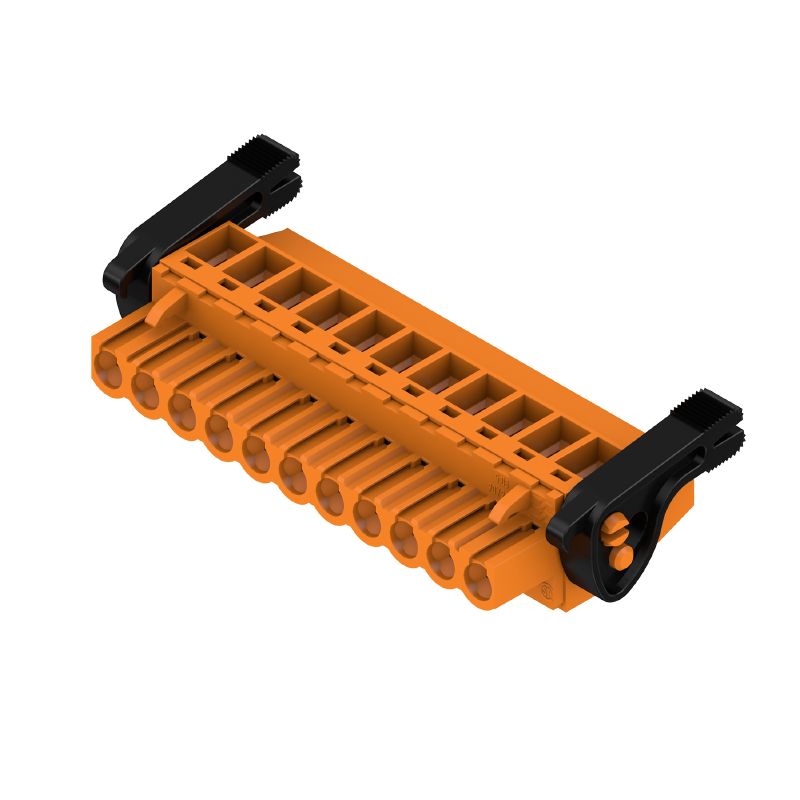

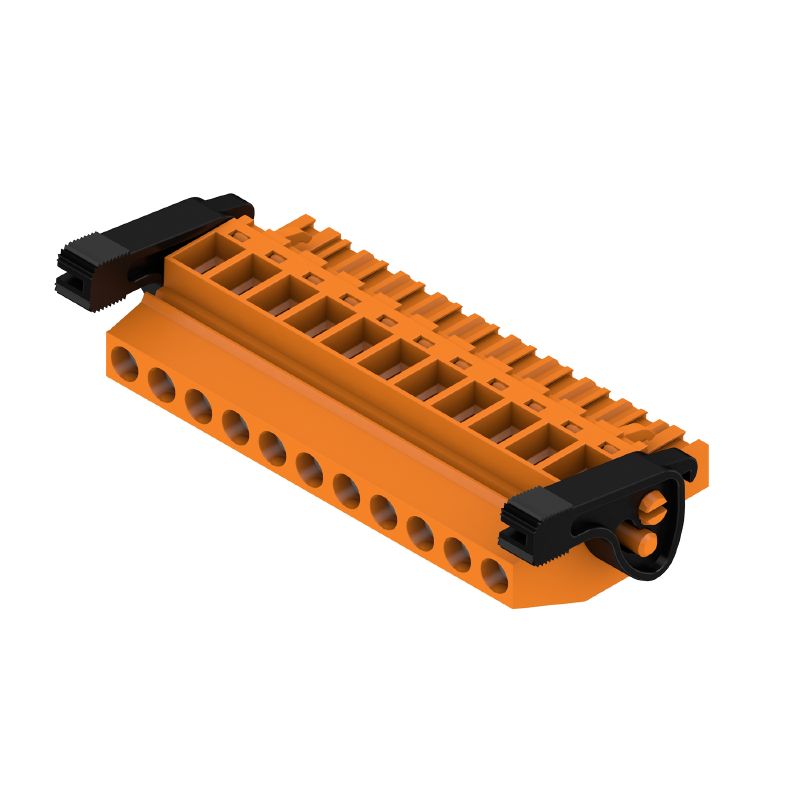

Introducing a versatile female plug-in connector for printed circuit boards, this component features 11 pins arranged at a 90° angle with a reliable clamping yoke connection With a maximum clamping capacity of 4 mm², it complies with various IEC and UL standards, enabling it to handle voltages up to 400 V and currents of 23 A Each connector is conveniently packaged in a protective box, ensuring safe storage and transport.

Perfect for your electrical projects requiring robust connectivity.

Features and Benefits:

•Clamping yoke connection for secure wire attachment.

•IEC: 400 V / 23 A / 0.2 - 4 mm² rating.

•UL rated for 300 V / 20 A / AWG 26 - AWG 12.

•Compatible with field connections.

•Touch-safe design compliant with relevant standards.

•Can be coded for specific applications.

•Designed for ease of use with simple wire connection methods.

Specifications:
