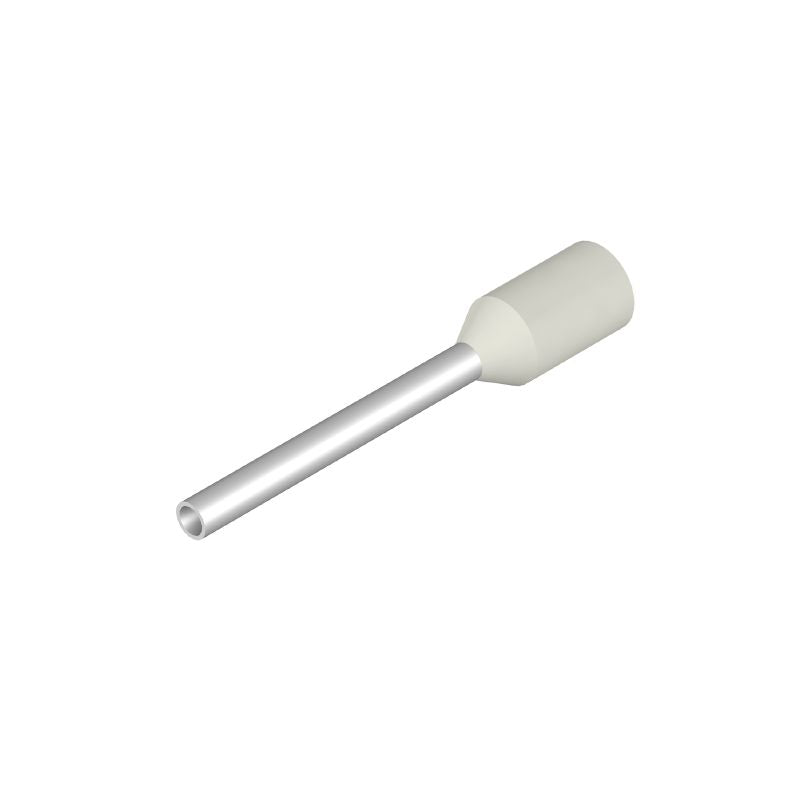

1076990000 - White Wire End Ferrule with Plastic Collar (Pack of 500)
1076990000 - White Wire End Ferrule with Plastic Collar (Pack of 500)
SKU: SKU: 1076990000 Download PDF
Select a Variant:
- 1076990000 - White Wire End Ferrule with Plastic Collar (Pack of 500)
- 1076990000 - White Wire End Ferrule with Plastic Collar (Pack of 500)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Enhance your wire connection projects with this efficient wire end ferrule, featuring a durable plastic collar and finished in a clean white color Specifically crafted for optimal wire connection and termination, this standard ferrule ensures reliable performance in various applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Available in a package of 500 items.
•Loose packaging for convenience.
Specifications:
| Collar diameter (D2) | 2.6 mm |
| Conductor cross-section | 0.5 mm² |
| Contact surface diameter (D1) | 1 mm |
| Contact surface length (L2) | 12 mm |
| Stripping length | 14 mm |
| L1 in mm | 18 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Wire connection cross section AWG, max. | AWG 20 |
| Certificate No. | E354986 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
