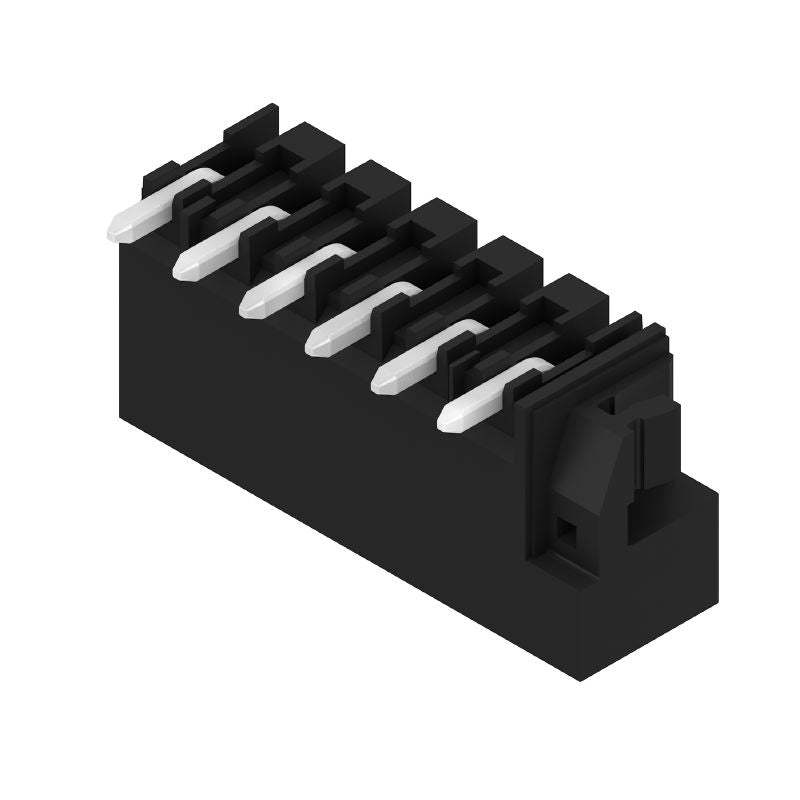

1057400000 - 3.50mm Black 6-Pole PCB Header Connector with 2.2mm Pins (Pack of 385)
1057400000 - 3.50mm Black 6-Pole PCB Header Connector with 2.2mm Pins (Pack of 385)
SKU: SKU: 1057400000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your soldering projects with this male header PCB plug-in connector, expertly crafted for through-hole (THT/THR) soldering applications With a compact 350 mm pitch, it boasts 6 poles and solder pin length of 22 mm The connector is finished in a sophisticated black, tinned coating and comes conveniently supplied on tape, making it simple to handle and install.
Features and Benefits:
•Compliant with RoHS directives without any exemptions.
•Touch-safe protection as per DIN standards.
•Can be coded to prevent incorrect connections.
•Capable of withstanding up to 25 plugging cycles.
Specifications:
| Number of poles | 6 |
| Pitch | 3.5 mm |
| Solder pin length | 2.2 mm |
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 15 A |
| Operating temperature range | -50 °C to 100 °C |
| Storage temperature range | -40 °C to 70 °C |
| Protection degree | IP10 |
| Volume resistance | ≤5 mΩ |
| UL voltage rating | 300 V |
| UL current rating | 10 A |
| Insulating material | LCP GF |
| Contact material | Cu-alloy |
| Net weight | 2.82 g |
