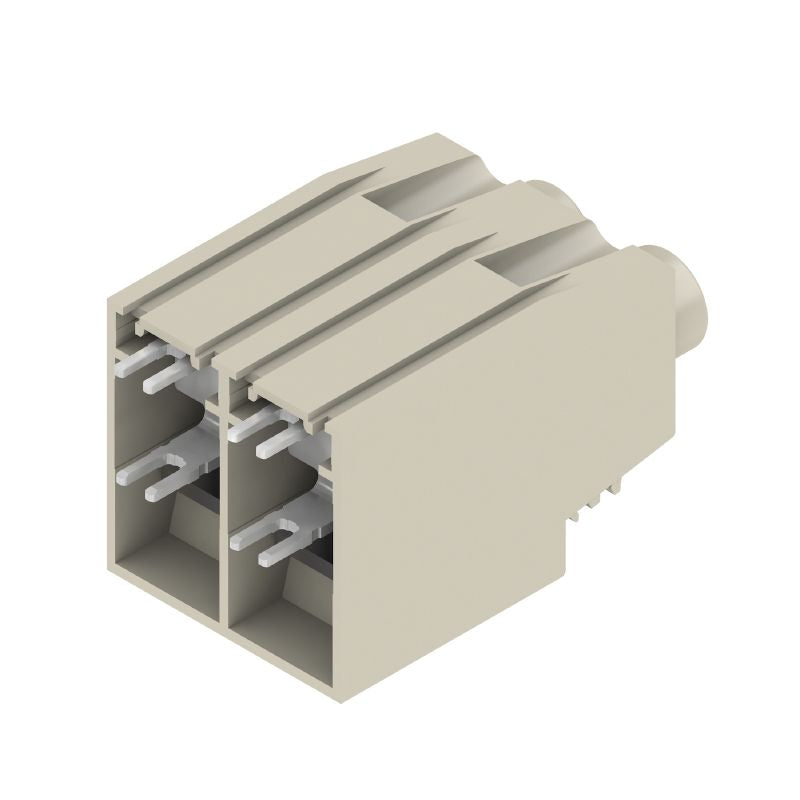

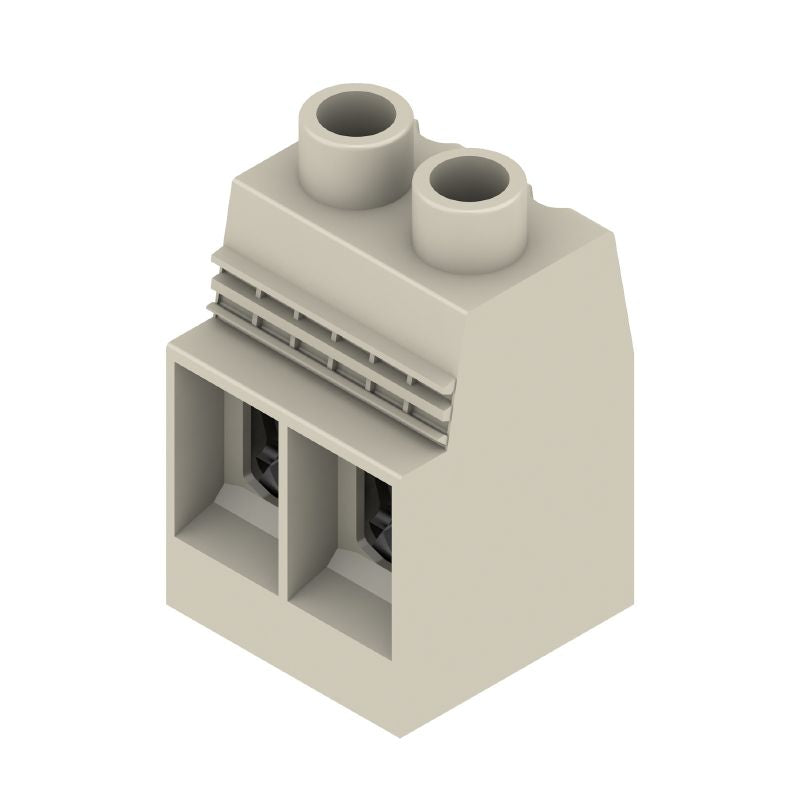

1047210000 - 4.5mm Tinned PCB Terminals with 50mm² Clamping Range, Grey (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This set of printed circuit board terminals is expertly crafted with a focus on functionality and efficiency Featuring a clamping connection mechanism capable of accommodating a maximum clamping range of 50 mm², these terminals are ideal for various electronic circuits Each solder pin measures 45 mm in length and is finished with a tinned coating for enhanced conductivity Presented in an elegant pebble grey, these components adhere to RoHS standards and are designed with a 90° outlet direction, making them versatile for different conductor types.

Features and Benefits:

•Constructed with a clamping yoke connection.

•Designed for mounting onto PCB using THT solder connections.

•Operates within a temperature range of -50°C to 120°C.

•Insulating material is Wemid (PA).

•Touch-safe protection according to DIN VDE 0470.

•Compliant with RoHS regulations.

Specifications:
