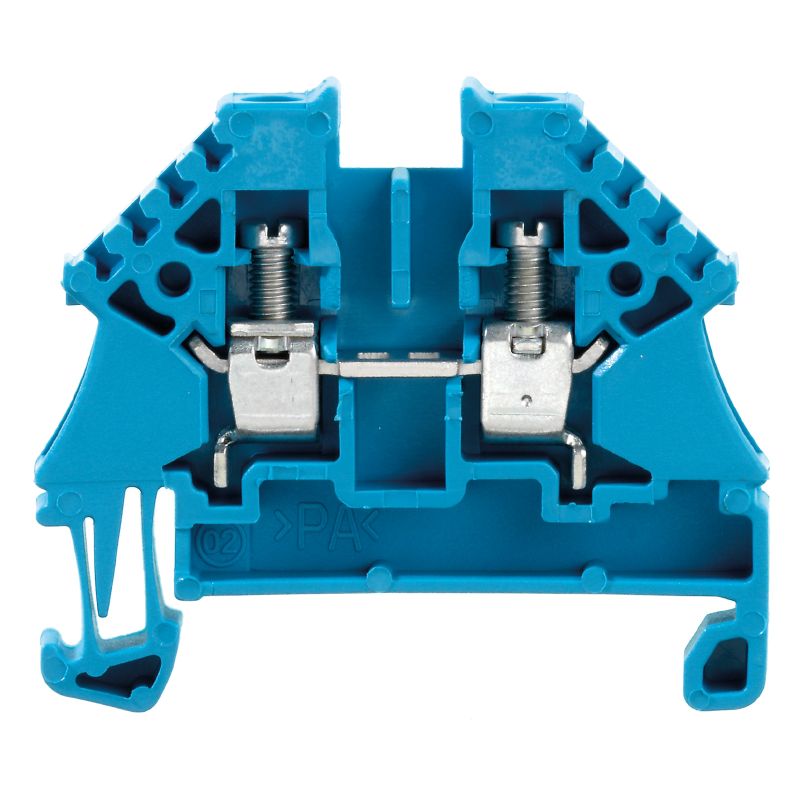

1042680000 - Blue Feed-Through Terminal Block, 32A, 4mm², 2 Connections (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a blue feed-through terminal block, designed with a reliable screw connection This versatile component supports wire sizes of up to 4 mm² and is rated for 32 A at a voltage of 500 V With the capability of accommodating two connections, it’s an essential addition for efficient electrical setups.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Constructed with Wemid material.

•UL 94 flammability rating of V-0.

•Measures 37.7 mm in depth and 6.1 mm in width.

•Ambient operating temperature ranges from -5 °C to 40 °C.

•Continuous operating temperature tolerances from -60 °C to 130 °C.

•Screw connection design.

•Snap-on mounting type.

Specifications:
