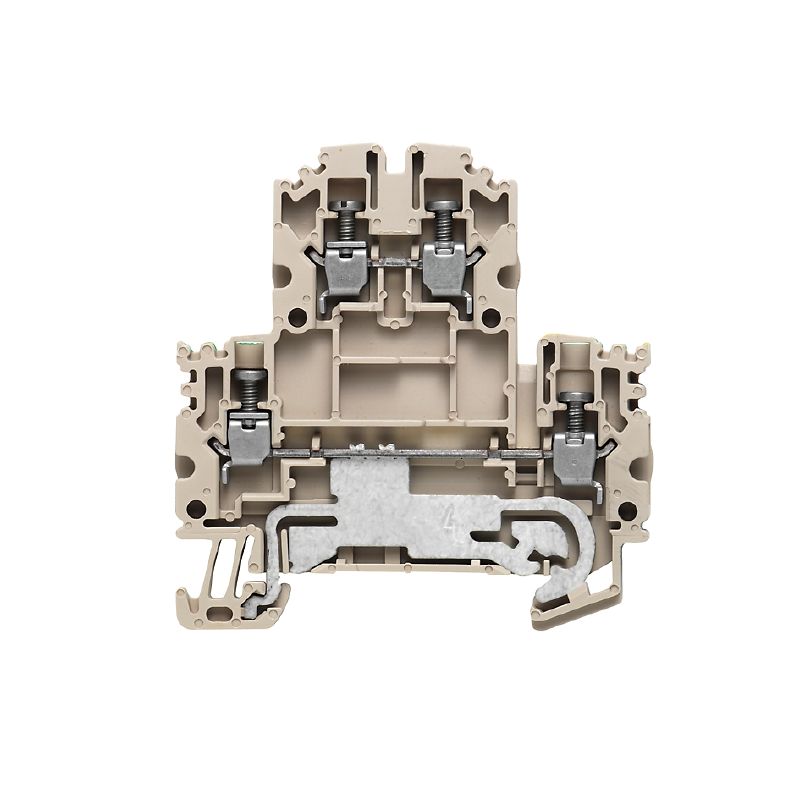

1041650000 - Dark Beige Multi-Tier Terminal, 2.5 mm², 62 mm Depth (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile multi-tier modular terminal, perfect for your connection needs It showcases an elegant dark beige color and features a reliable screw connection The terminal supports a wire cross-section of 25 mm² and is rated for up to 800 V, allowing for a maximum of 4 connections across 2 levels Engineered for compatibility with a TS 35 mounting rail, it boasts compact dimensions of 62 mm in depth, 61 mm in height, and 5.

1 mm in width Built to withstand diverse temperatures, it remains effective for storage between -25 °C to 55 °C and functions optimally in ambient conditions ranging from -5 °C to 40 °C This terminal complies with RoHS regulations and does not contain any SVHC above 01 wt% It also meets ATEX and IECEx standards for use in potentially explosive environments, with a voltage capacity of 550 V and current rating of 24 A, supporting wire cross-sections up to 4 mm².

The snap-on mounting design along with various clamping options ensures secure and stable connections, making this terminal a reliable choice for your electrical projects.

Features and Benefits:

•Suitable for a multi-tier modular terminal application.

•Contains up to 4 connections and operates with screw connection.

•Dark beige color allows for easy identification.

•Environmentally compliant with RoHS and REACH regulations.

•Rated for both ATEX and IECEx environments.

Specifications:
