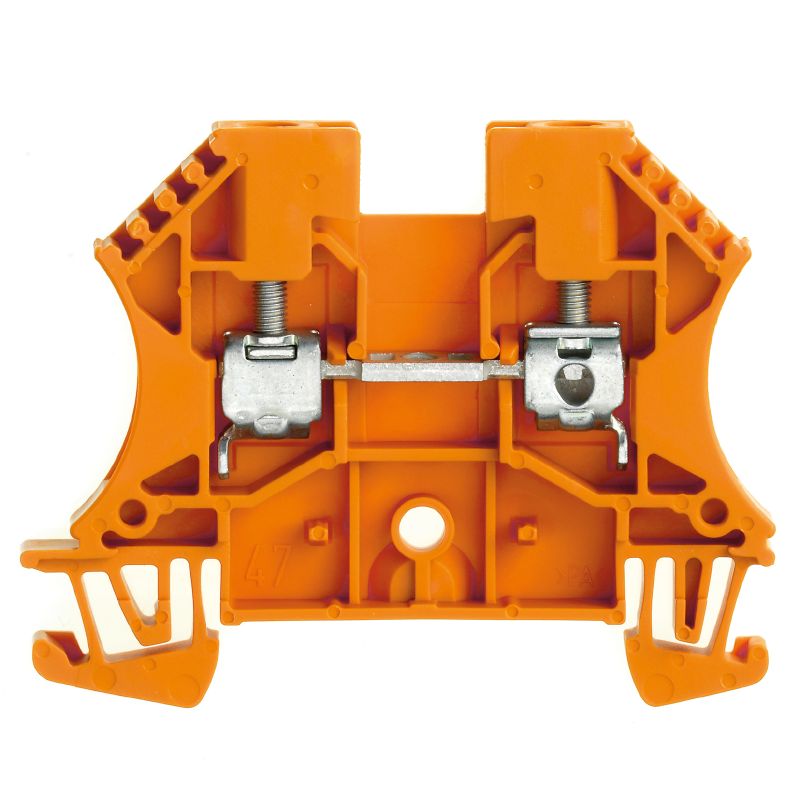

1036760000 - Orange 4mm² Terminal Block, 32A, Compact 46.5mm Depth (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WDU 4 OR feed-through terminal block, a reliable solution for your wiring needs This block, finished in a vibrant orange, accommodates wire cross-sections of up to 4 mm² and boasts a current capacity of 32 A, supporting voltages up to 800 V It features two connection points for added functionality In terms of dimensions, it has a depth of 465 mm, a height of 60 mm, and a slim width of 6.

1 mm, making it a compact choice for various applications.

Features and Benefits:

•RoHS compliant.

•Snap-on type of mounting.

•Explosion-tested version.

•End cover plate required.

•Max. voltage rating of 800 V.

•Continuous operating temperature range from -60 °C to 130 °C.

•Net weight of 9.38 g.

•Material constructed from Wemid.

•Flammability rating of V-0.

Specifications:
