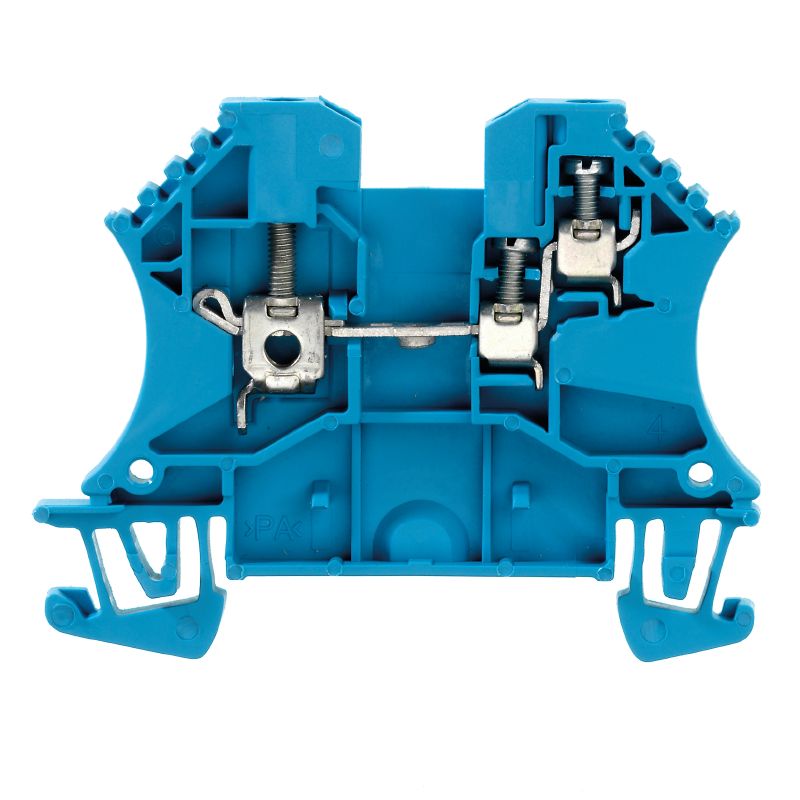

1024780000 - Blue Screw Terminal Block, 2.5 mm², 24 A, 800 V (Pack of 100)

SKU: SKU: 1024780000 Download PDF

Select a Variant:

1024780000 - Blue Screw Terminal Block, 2.5 mm², 24 A, 800 V (Pack of 100)

SET THE QTY:

Now $334.85 Web pricing policy

~~BEFORE $0.00~~ Now $334.85 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a reliable blue feed-through terminal block equipped with a screw connection This terminal accommodates a wire cross-section of 25 mm² and is rated for a maximum current capacity of 24 A, capable of handling voltages up to 800 V It offers a single connection point for seamless integration into your electrical systems.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Explosion-tested version.

•Available with a variety of connection specifications.

•Convenient mounting rail design.

•Includes an end cover plate requirement.

Specifications:

Depth	46.5 mm
Height	60 mm
Width	5.1 mm
Net weight	7.5 g
Storage temperature	-25 °C to 55 °C
Ambient temperature	-5 °C to 40 °C
Continuous operating temperature (min)	-60 °C
Continuous operating temperature (max)	130 °C
Max voltage (IECEX)	550 V
Rated voltage	800 V
Nominal current	24 A
Current at maximum wires	32 A
Rated impulse withstand voltage	8 kV
Power loss	0.77 W
Pollution severity	3
Surge voltage category	III
Conductor cross-section (max)	4 mm²
Conductor cross-section (min)	0.5 mm²
Number of connections	1
Tightening torque (max)	0.6 Nm
Tightening torque (min)	0.4 Nm
Blades size for clamping	0.6 x 3.5 mm
Clamping range (max)	4 mm²
Mounting rail type	TS 35
