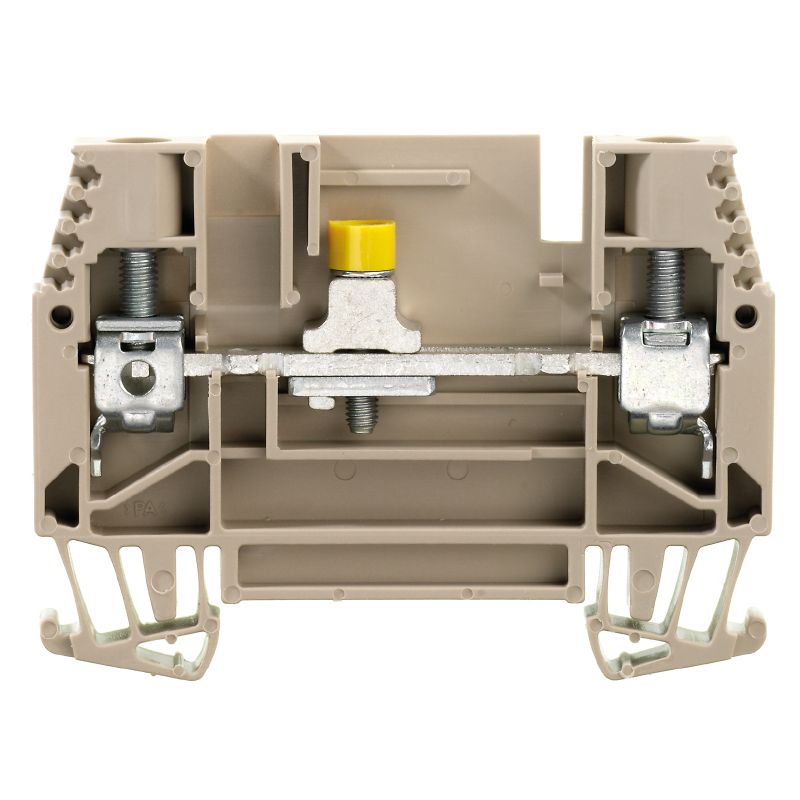

1017900000 - Compact 41.2mm Transformer Disconnect Terminal with Snap-On Mounting (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WTQ 6/1 measuring transformer disconnect terminal, expertly designed for screw connections With dimensions of 412 mm in depth, 65 mm in height, and 79 mm in width, this terminal is compact yet highly functional It meets RoHS standards and holds UL certification (certificate number E60693), ensuring high quality and safety This device is ideal for ambient temperatures ranging from -5 °C to 40 °C and can be stored in conditions as extreme as -25 °C to 55 °C.

It operates continuously within a temperature spectrum of -50 °C to 120 °C Weighing just 2051 grams and featuring a sophisticated dark beige Wemid body, the WTQ 6/1 is both lightweight and aesthetically pleasing The snap-on mounting design offers easy installation and accommodates two clampable conductors Plus, it supports connections for both finely stranded and solid core wires, making it a versatile choice for various applications.

Features and Benefits:

•RoHS compliant with exemption.

•Designed for screw connection.

•Snap-on mounting type.

•UL 94 flammability rating V-0.

•Closed open sides.

•No explosion-tested version.

•Capacity for two clampable conductors with a rated connection.

Specifications:
