10140 - Ergonomic Hand Tool with Knurled Grip and Chrome Finish
10140 - Ergonomic Hand Tool with Knurled Grip and Chrome Finish
SKU: SKU: 10140
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

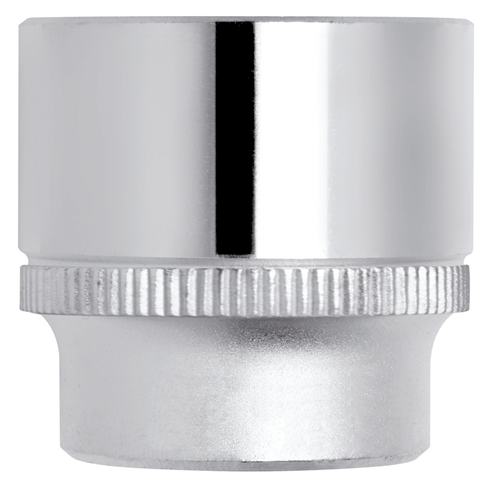

Experience the craftsmanship of this hand-operated tool, designed for usability and longevity Featuring a knurled grip for enhanced control, the tool has a matte satin chrome finish on the drive side, while the driven end boasts a high-polish shine Conforming to both DIN 3124 and ISO 2725-1 standards, it showcases a square drive that meets DIN 3120 - C 12,5 and ISO 1174 specifications, complete with a ball retention groove for secure usage.
Made from robust chromium vanadium steel, this tool combines ergonomic design with superior durability for optimal performance.
Features and Benefits:
•Hand-operated with knurled grip for better control.
•Matt satin chrome-plated surface for durability.
•Brightly polished driven end for improved aesthetics.
•Square drive with ball retention groove for secure connection.
•Manufactured from high-quality chromium vanadium steel.
Specifications:
| Total width [mm] | 22.2 mm |
| Total length [mm] | 38 mm |
| Net weight [kg] | 0.054 kg |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Standard | DIN 3120 – C 12,5 DIN 3124 ISO 2725-1 ISO 1174 |
| Insert-Ø 1 | 22.2 mm |
| Insert-Ø 2 | 20.2 mm |
| Working length | 38.0 mm |
| Material | Chrome-vanadium steel |
| Surface | matt chrome-plated (input side), bright polished (output side) |
| Compliance | compliant |
| Width across flats 1 [mm] | 14 |
| Safety | Ball Catching Cricket |
