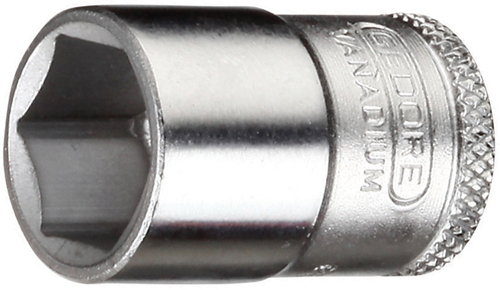

10108 - 3/8" Square Drive Socket, Vanadium Steel, Chrome Finish
10108 - 3/8" Square Drive Socket, Vanadium Steel, Chrome Finish
SKU: SKU: 10108
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This socket is designed for performance, featuring a square drive that meets the standards of DIN 3120 - C 10 and ISO 1174 It includes a ball retention groove for secure use and is operated manually The socket boasts non-slip cross knurling for enhanced grip and is constructed from high-quality GEDORE vanadium steel 31CrV3, finished with a polished chrome plating for a sleek and durable exterior.
Features and Benefits:
•Manually operated with non-slip cross knurling.
•Made of GEDORE vanadium steel 31CrV3.
•Polished and chrome-plated surface.
Specifications:

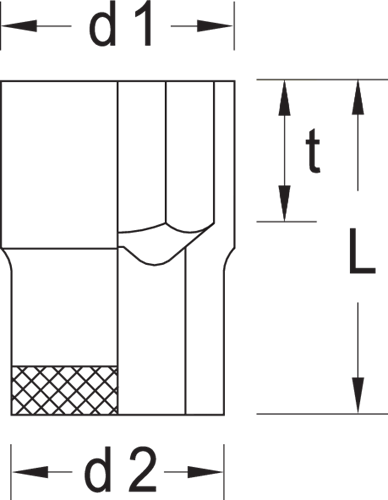

| Total width [mm] | 24 mm |
| Total length [mm] | 30 mm |
| Drive mount, square [metric] | 10.0 mm |
| Drive connector square [inch] | 3/8" |
| Insert-Ø 1 | 24.0 mm |
| Insert-Ø 2 | 22.7 mm |
| Working length | 30.0 mm |
| Operating depth | 12.5 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | polished, chrome-plated |
| Compliance | compliant |
| Width across flats 1 [AF] | 11/16" |
| Safety | Ball Catching Cricket |
