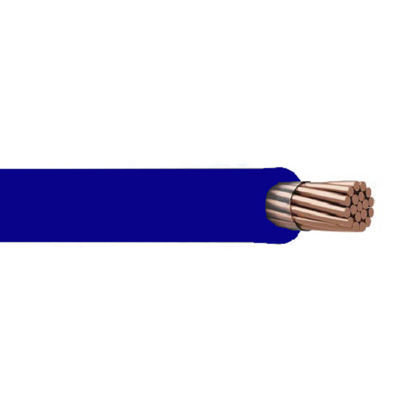

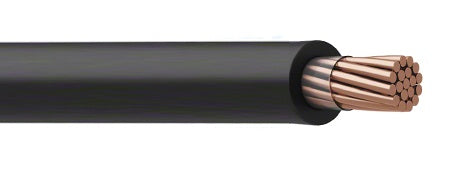

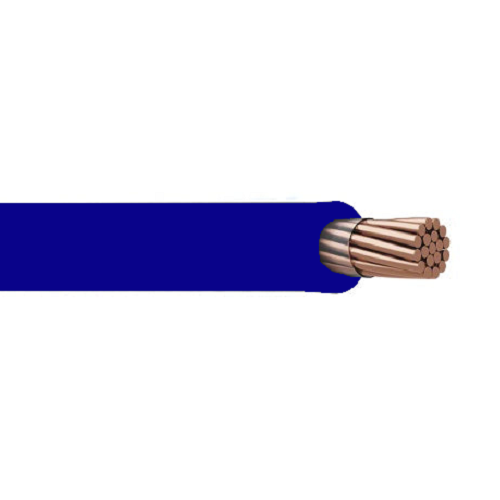

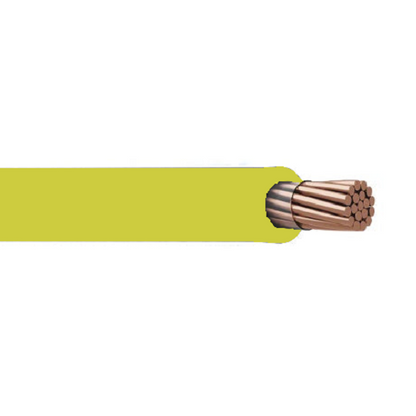

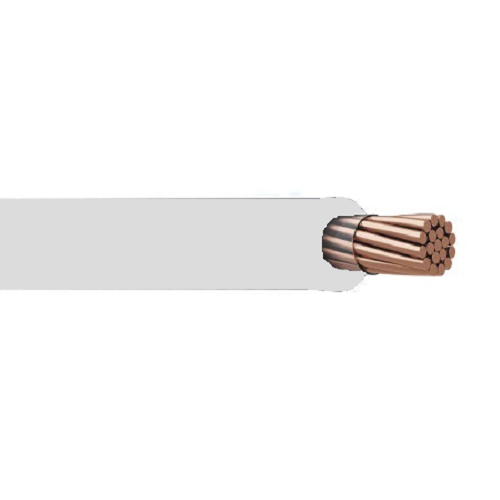

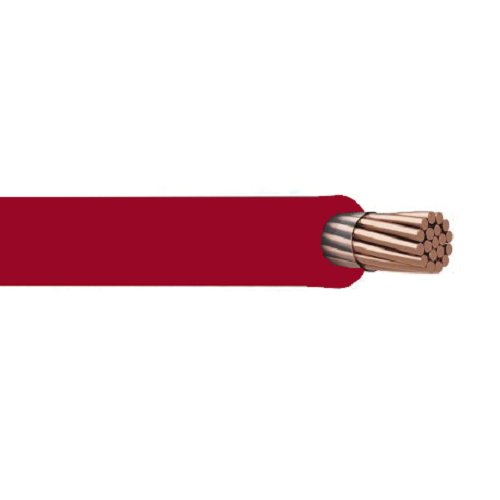

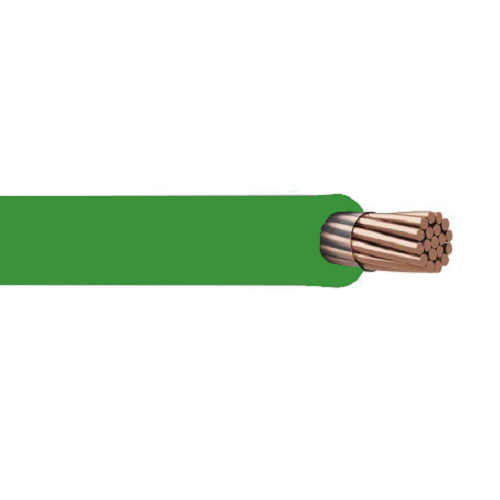

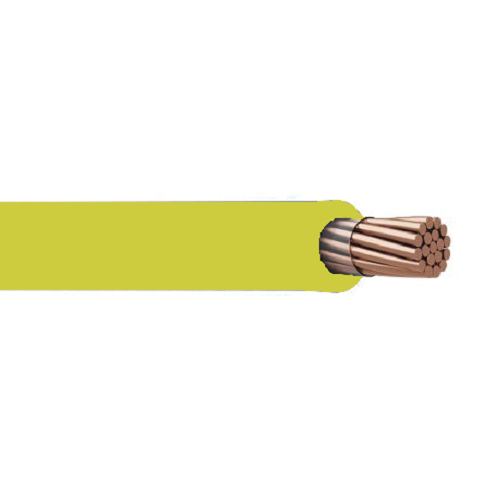

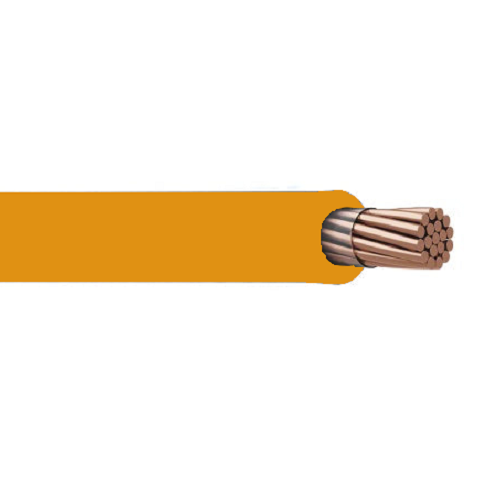

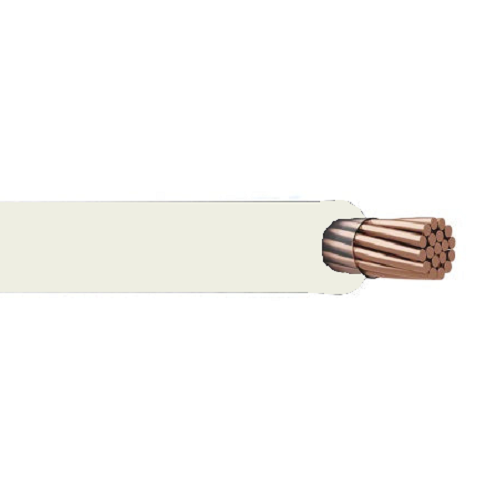

1000 MCM XHHW-2 Copper Building Wire

1000 MCM XHHW-2 Copper Building Wire

SKU: NES4567BK Download PDF

Color:
gauge:
  • 1000 MCM XHHW-2 Copper Building Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $43.56 /FT
BEFORE   Now $43.56 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

1000 XHHW-2 Copper Building Wire,  1000 XHHW Cable, 1000 XHHW Service Wire,  1000 XHHW Copper Wire.

Conductor:

The cable has an annealed bare copper conductor (solid or concentrically stranded). The conductor has excellent electrical conductivity and excellent resistance to moisture. The conductor also has excellent resistance to compression, pressure, and heat.

Insulation:

The cable is insulated with a cross-linked polyethylene jacket (XLPE) that serves as a protective armor to the conductors. It is flame-retardant and resistant to abrasion, corrosion, moisture, dryness, chemicals, and heat.

Resources
Applications
XHHW is a multi-purpose electrical wire with cross-linked high heat water-resistant insulation. The most common applications include raceways for branch circuit wiring, conduits, services, and feeders. It is also used as a building wire. XHHW is suitable for industrial applications due to its toughness and excellent resistance to chemicals. The electrical wire is suitable for temperatures up to 90°C, with a voltage rating of 600 volts.
Features
Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under-recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
•UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH
Specifications
•Size: 1000 MCM
•Number of Strands: 61
•Insulation Thickness XLPE: 2.03 mm / 0.080 inches
•Outside Diameter: 33.32 mm / 1.312 inches
•Weight: 3.270 lbs per ft
•Allowable Ampacity: 455 Amps at 60ºC / 545 Amps at 75ºC / 615 Amps at 90ºC
