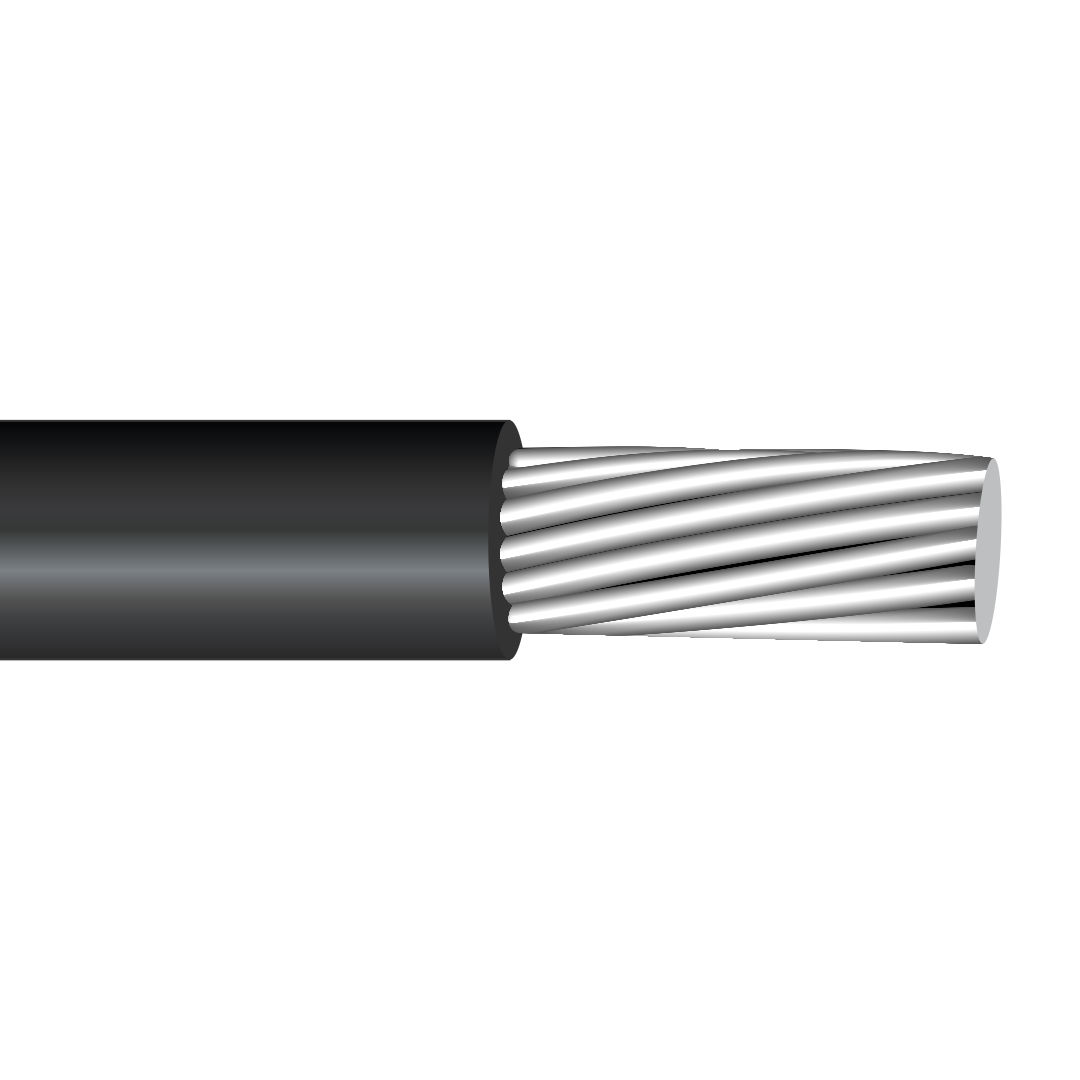

1000' 250 MCM Aluminum RHH/RHW-2 XLP USE-2 Direct Burial

1000' 250 MCM Aluminum RHH/RHW-2 XLP USE-2 Direct Burial

SKU: NES1679X1000   Download PDF

Color
Qty:
Now $2,080.00   Web pricing policy
BEFORE   $0.00 Now $2,080.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details

Choose your required cuts from here

250 MCM Aluminum RHH/RHW-2 XLP USE-2 Direct Burial
$2.38
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

250 MCM wire, 250 MCM aluminum rhh wire, 250 MCM aluminum rhw cable, 250 MCM aluminum bury cable, direct burial electrical cable, direct burial power cable, direct burial service entrance cable.

Conductors:

Compact bare 8000 series aluminum, with Class B stranding per ASTM.

Insulation:

Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP)

    Compatible with Manufacturer
    Houston Wire :



    Black : HW003A25001
    Black : 250-01XLPUSEBLACKAL
    Priority Wire & Cable : Black : 250-01XL-USE-2-ALUM
    Southwire : Black : 27288001

    Resources
    Applications
    USE-2 cables are power distribution cables for service entrance below ground and direct burial, as well as raceways. The electrical cable is approved according to the National Electric Code, except for the use in cable trays. The maximum operating temperature for this electrical cable is 90°C in wet and dry locations. The voltage rating is 600 volts.
    Features
    Standards:

    • UL 44
    • UL 854
    • NEMA WC 70/ICEA S-95-658
    • Requirements of the National Electrical Code
    • ASTM B800, B801, B836
    • Sunlight resistant
    • Oil Resistant PRI/PRII
    • Gas and Oil Res GRI/GRII
    • RUS ACCEPTED

    Allowable Ampacity for 250 MCM ALUMINUM RHH/RHW-2 XLP USE-2 DIRECT BURIAL: 215 Amps
    Specifications
    • Gauge: 250

    • Stranding: 35

    • Conductor Diameter Inches: 0.520

    • Insulation Thickness Inches: 0.110

    • O.D. Inches: 0.740

    • New Weight lb/1000FT: 1085 lbs

    • Ampacity at 30°C: 215 Amps
