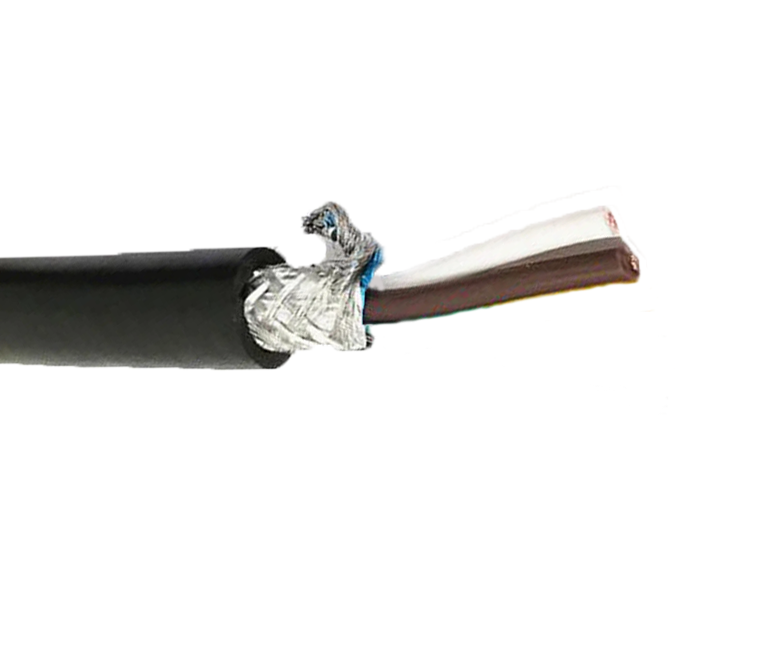

1000' 18/2 SOOW Shielded Portable Cord 600V UL/CSA

1000' 18/2 SOOW Shielded Portable Cord 600V UL/CSA

SKU: NES32190X1000

Now $2,690.00
BEFORE   $0.00 Now $2,690.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

18/2 SOOW shielded Multiconductor Control Portable Cord UL/CSA - 600V

Allowable Ampacity For 18/2 SOOW shielded Multiconductor Control Portable Cord UL/CSA - 600V- Black: 10 Amps

Also Known As:

18/2 SOOW Portable Power Cable, 18/2 SOOW, 18/2 SOOW Power Cord, 18/2 SOOW Portable Cord, 18/2 SOOW Service Cord, 18/2 SOOW Service Cable, 18/2 SOOW Cord, 18/2 SOOW Cable, 18/2 SOOW Wire, 18/2 SOOW Flexible Power Cable, 18/2 SO Cord, 18/2 SOOW Control Cable.

Construction:

Conductor:

Stranded, bare, and fully soft annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions.

Insulation:

Heat, moisture and oil resistant EPDM

Jacket:

Heat, moisture and oil resistant flexible CPE jacket

Applications
SOOW is water and weather-resistant service cable with an oil-resistant jacket and insulation. It is a reputable low-cost portable electrical cable that offers superior resistance to abrasion. The cable famously stays intact when in contact with a hot surface, making it perfect for tough applications, including compressors, industrial machinery, push-button remotes, industrial control systems, and water purification systems. SO is commonly used in mills, marinas, mines, industrial, commercial and residential facilities.It is also perfect for industrial plants, steel mills, breweries, theaters, process facilities, and construction settings. The cable exhibits premium flexibility and is resistant to chemicals, oil, water, sunlight, and air. The voltage rating is set at 600. A multiconductor cable is suitable for circuit branching and direct burial. The temperature range is -40°C to 90°C. SOOW electrical cable maintains its flexibility in both hot and cold applications.
Features
Standards:
• UL Flexible Cord - UL Subject 62
• CSA Flexible Cord - C22.2-49
• MSHA Approved
• RoHS Compliant
• OSHA Acceptable
• MSHA Flame Resistance - Mining Applications (P-136-MSHA)
• FT1 and FT2 Flame Test
• Federal Spec J-C-580B
Specifications
Specification:
• AWG Size: 18
• Number of Conductors: 2
• Conductor Strand: 16
• Insulation Thickness: 30 mil
• Jacket Thickness: 60 mil
• Approx. OD: 0.371 inch
• Approx. Weight ( lb/1000ft ): 91
• Ampacity: 10
