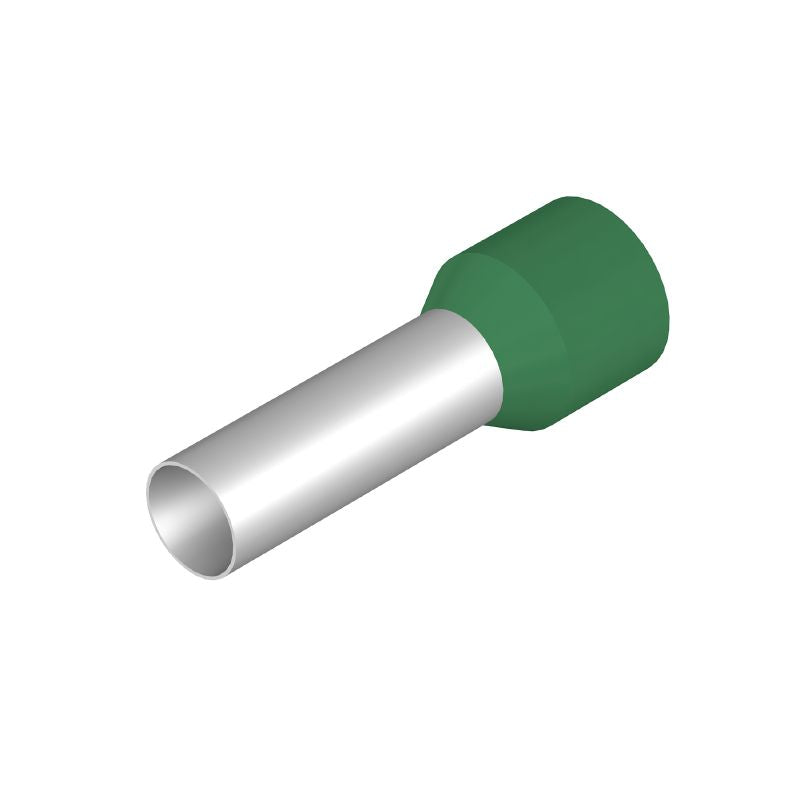

0566000000 - Green Plastic Collar Wire-End Ferrule for Conductors (Pack of 100)
0566000000 - Green Plastic Collar Wire-End Ferrule for Conductors (Pack of 100)
SKU: SKU: 0566000000 Download PDF
Select a Variant:
- 0566000000 - Green Plastic Collar Wire-End Ferrule for Conductors (Pack of 100)
- 0566000000 - Green Plastic Collar Wire-End Ferrule for Conductors (Pack of 100)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing this versatile wire-end ferrule, equipped with a green plastic collar and constructed to meet standard specifications Engineered to support specific conductor cross-sections, this ferrule features a precisely measured collar diameter, contact surface diameter, and length, making it ideal for a range of applications.
Features and Benefits:
•Compliant with RoHS regulations without any exemptions.
•Packaging is in loose quantities of 100 items.
Specifications:
| Collar diameter (D2) | 8.8 mm |
| Conductor cross-section | 16 mm² |
| Contact surface diameter (D1) | 5.8 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 28 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 21 mm |
| Wire connection cross section AWG, max. | AWG 6 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
