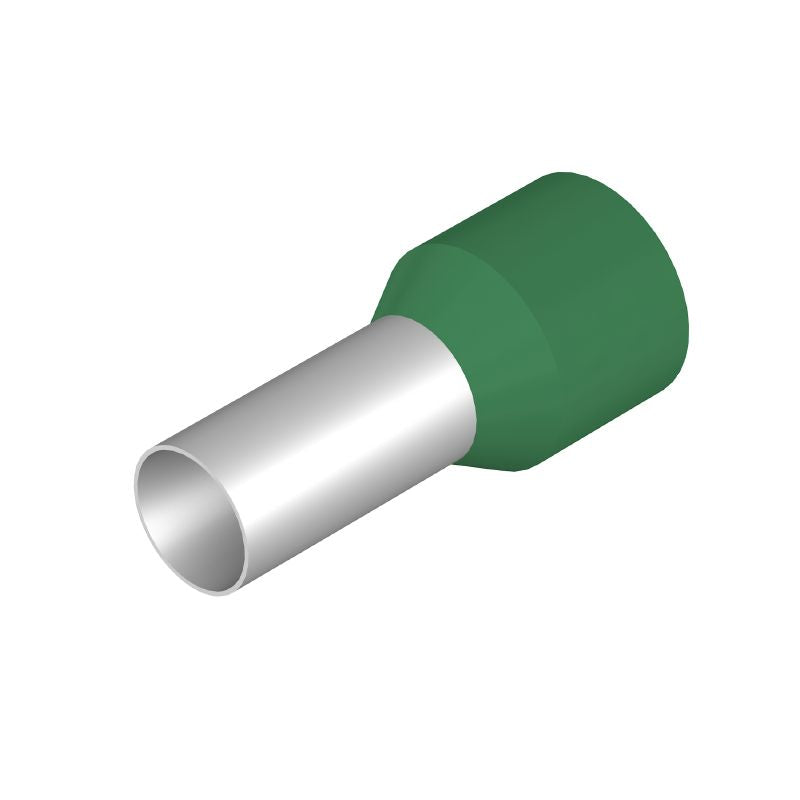

0565900000 - Green Wire Ferrule, 8.8mm Collar, 16mm² Conductor (Pack of 100)
0565900000 - Green Wire Ferrule, 8.8mm Collar, 16mm² Conductor (Pack of 100)
SKU: SKU: 0565900000 Download PDF
- 0565900000 - Green Wire Ferrule, 8.8mm Collar, 16mm² Conductor (Pack of 100)
- 0565900000 - Green Wire Ferrule, 8.8mm Collar, 16mm² Conductor (Pack of 100)
Couldn't load pickup availability
Description:
Optimize your electrical connections with this wire end ferrule featuring a plastic collar in an eye-catching green color Engineered with standard specifications, its collar diameter measures 88 mm, while the contact surface boasts a diameter of 58 mm and a length of 12 mm Suitable for conductor cross-sections of 16 mm², it requires a stripping length of 15 mm for easy installation This ferrule is fully RoHS compliant, free from any exemptions, and contains no SVHC above the 0.
1 wt% threshold, ensuring a reliable and safe connection for your projects.
Features and Benefits:
•RoHS-compliant without exemption.
•Loose packaging.
•Designed for standard applications.
Specifications:
| Collar diameter (D2) | 8.8 mm |
| Conductor cross-section | 16 mm² |
| Contact surface diameter (D1) | 5.8 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 22 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 15 mm |
| Wire connection cross section AWG, max. | AWG 6 |
| UL file number | E499744 |
| GTIN (EAN) | 4008190022181 |
