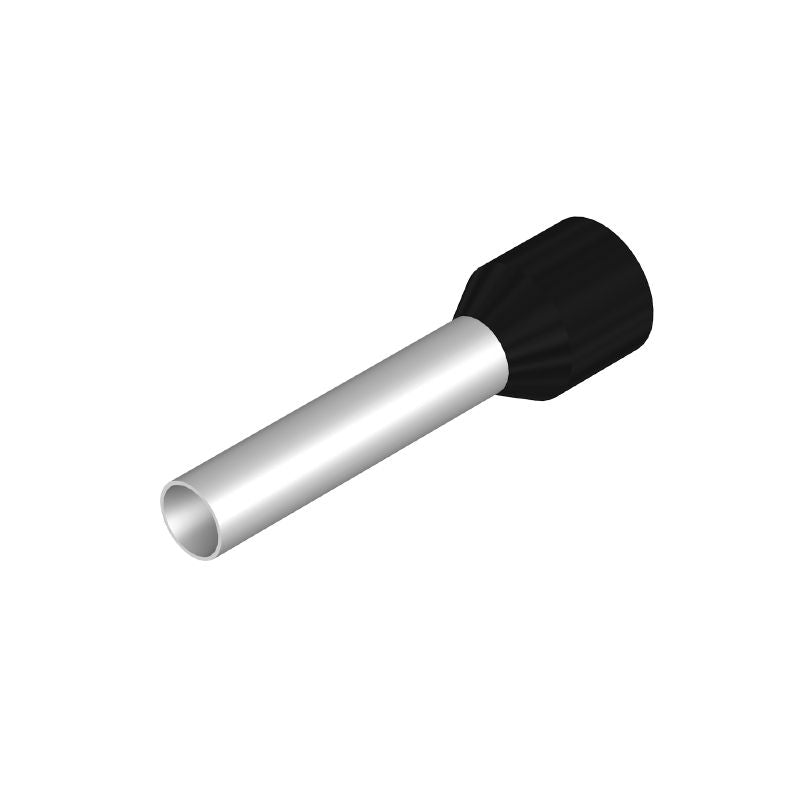

0565700000 - 20mm Standard Black Wire Ferrule with Plastic Collar (Pack of 100)
0565700000 - 20mm Standard Black Wire Ferrule with Plastic Collar (Pack of 100)
SKU: SKU: 0565700000 Download PDF
Select a Variant:
- 0565700000 - 20mm Standard Black Wire Ferrule with Plastic Collar (Pack of 100)
- 0565700000 - 20mm Standard Black Wire Ferrule with Plastic Collar (Pack of 100)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
This wire end ferrule features a durable plastic collar and comes in a classic black color Fully compliant with RoHS regulations, this item is available for purchase in bulk, typically ordered in packs of 100 and delivered in loose packaging.
Features and Benefits:
•Compliant with RoHS standards.
•Packaged loose and available in a standard order quantity of 100.
Specifications:
| Collar diameter (D2) | 6.3 mm |
| Conductor cross-section | 6 mm² |
| Contact surface diameter (D1) | 3.5 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 26 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.3 mm |
| Stripping length | 20 mm |
| Wire connection cross section AWG, max. | AWG 10 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
