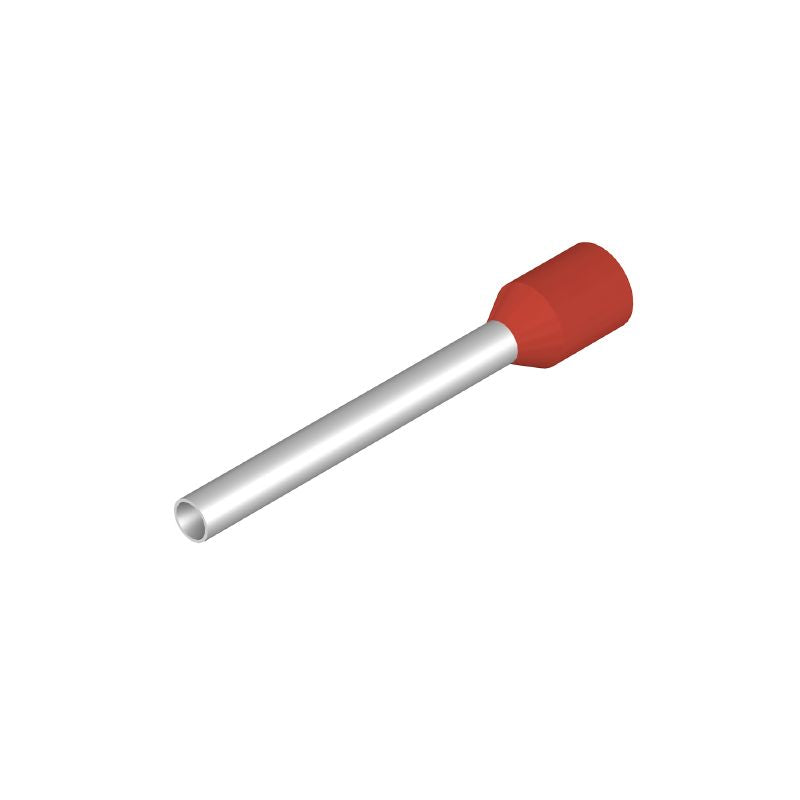

0565600000 - 24mm Red Wire Ferrule with Plastic Collar for 1.5mm² Conductors (Pack of 500)
0565600000 - 24mm Red Wire Ferrule with Plastic Collar for 1.5mm² Conductors (Pack of 500)
SKU: SKU: 0565600000 Download PDF
Select a Variant:
- 0565600000 - 24mm Red Wire Ferrule with Plastic Collar for 1.5mm² Conductors (Pack of 500)
- 0565600000 - 24mm Red Wire Ferrule with Plastic Collar for 1.5mm² Conductors (Pack of 500)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing a wire end ferrule, featuring a durable plastic collar in a striking red hue Measuring 24 mm in length, this ferrule is tailored for standard applications and fits conductor cross-sections of 15 mm², ensuring reliable performance for your wiring needs.
Features and Benefits:
•Wire-end ferrule with plastic collar.
•Loose packaging.
•RoHS compliant without exemption.
•No SVHC above 0.1 wt%.
Specifications:
| Collar diameter (D2) | 3.5 mm |
| Conductor cross-section | 1.5 mm² |
| Contact surface diameter (D1) | 1.7 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 24 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 20 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
