04960-415 2.25 inch Mushroom Plunger with Shield and Weatherproof

04960-415 2.25 inch Mushroom Plunger with Shield and Weatherproof

SKU: 04960415 Download PDF

Now $330.11
BEFORE   Now $330.11
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This switch is a weatherproof hand operated, control circuit device, rated ‘Heavy Duty’ normally for use with electromagnetic equipment The black cover with shield and painted with a dry powder paint, is made from die-cast zinc The plunger head is chrome plated steel Gold plated contacts eliminate high resistance tarnishing Provided with tamper resistance cover screws Nema 4, IP 66 Each captive terminal will accept (2) #14 AWG.

Features and Benefits:

    •Weatherproof hand operated switch.

    •Control circuit device.

    •Rated ‘Heavy Duty’ for use with electromagnetic equipment.

    •Black cover made from die-cast zinc.

    •Chrome plated steel plunger head.

    •Gold plated contacts eliminate high resistance tarnishing.

    •Tamper resistance cover screws.

    •Nema 4, IP 66 rated.

    •Each captive terminal will accept (2) #14 AWG.

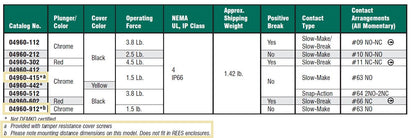

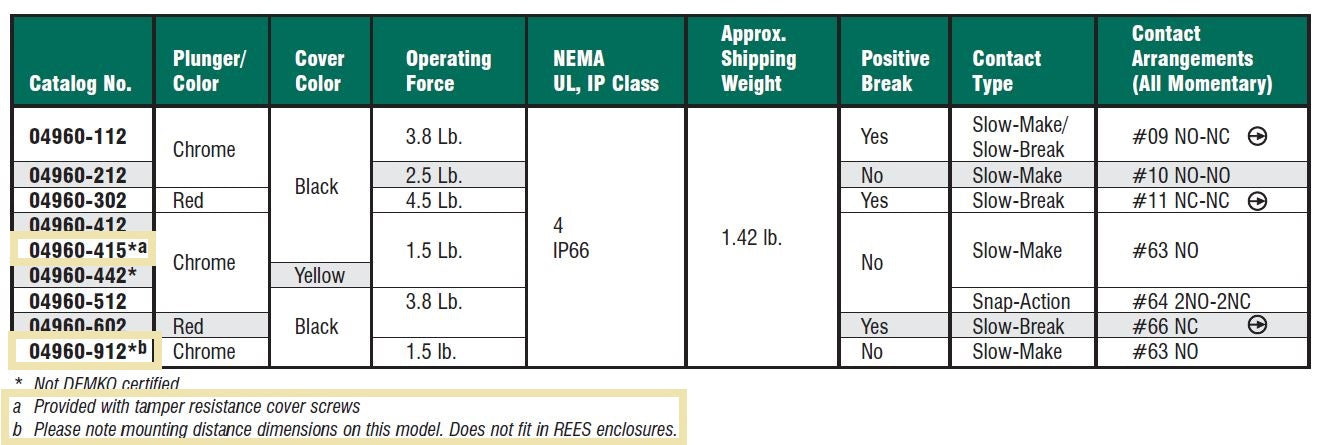

Specifications:

 Plunger Color Chrome
 Cover Color Black
 Operating Force 1.5 lb

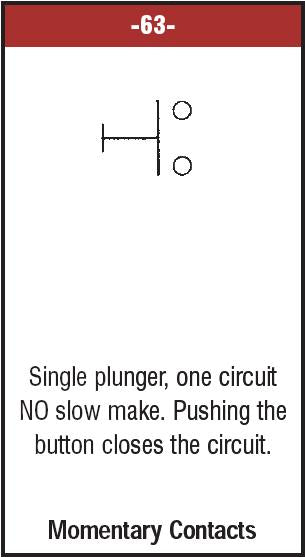

 Contact Arrangement #63 NO
 Contact Type Slow-Make
 Operating Type Momentary
