Home / 04954-202 Cable Operated Switches with Double Flag Indicator(s) or Latch Plates
1 4

04954-202 Cable Operated Switches with Double Flag Indicator(s) or Latch Plates

04954-202 Cable Operated Switches with Double Flag Indicator(s) or Latch Plates

SKU: 04954202   Download PDF

Qty:
Now $1,134.45   Web pricing policy
BEFORE   Now $1,134.45 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

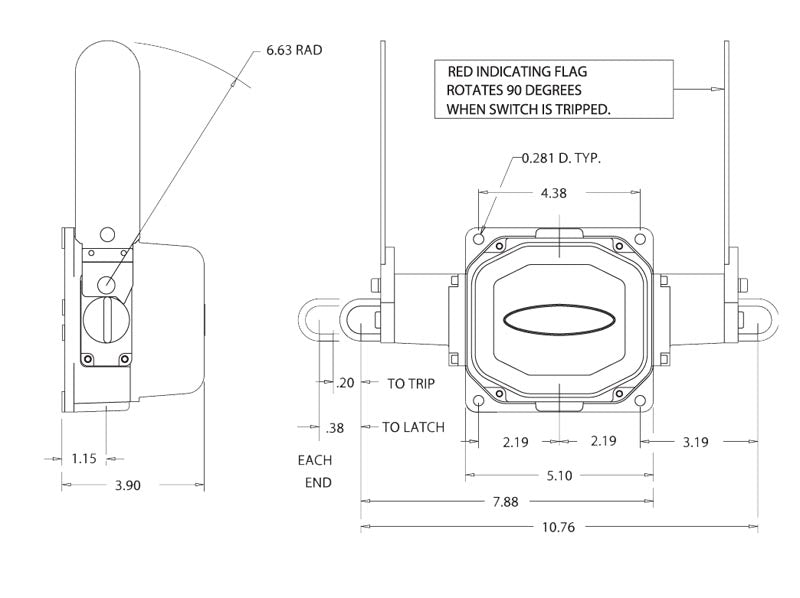

The cable operated switch with double flag indicator and latch plates is designed with 1 Normally Open (NO) and 1 Normally Closed (NC) contact on each end It is particularly suitable for Emergency Stop applications and regular circuit control The switch housing is crafted from high-quality die-cast aluminum and painted in yellow, ensuring durability The switch features independently operating red indicating flags that rotate 90 degrees when activated, and they can be manually reset to their normal position.

Features and Benefits:

    •High-quality die-cast aluminum housing.

    •Powder-coated painted yellow for durability.

    •Independently operating red indicating flags for clear visibility.

    •Manual reset for easy operation.

    •Suitable for Emergency Stop applications.

    •Emergency Stop applications.

    •Ordinary circuit control.

Specifications:

 Trip Force per End 25 lb
 Flag End Replaceable Both
 Operating Force Between 10 ft. Supports 6 lb
 Reset Type Manual
 Contact Arrangement NO + NC
 Contact Arrangement Each End NO + NC
 Type / Style Flags
