04917-312 Flat Chrome Plunger Push Button Switches

04917-312 Flat Chrome Plunger Push Button Switches

SKU: SKU: 04917312   Download PDF

Qty:
Regular price Now $578.00   Web pricing policy
Regular price BEFORE   Sale price Now $578.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

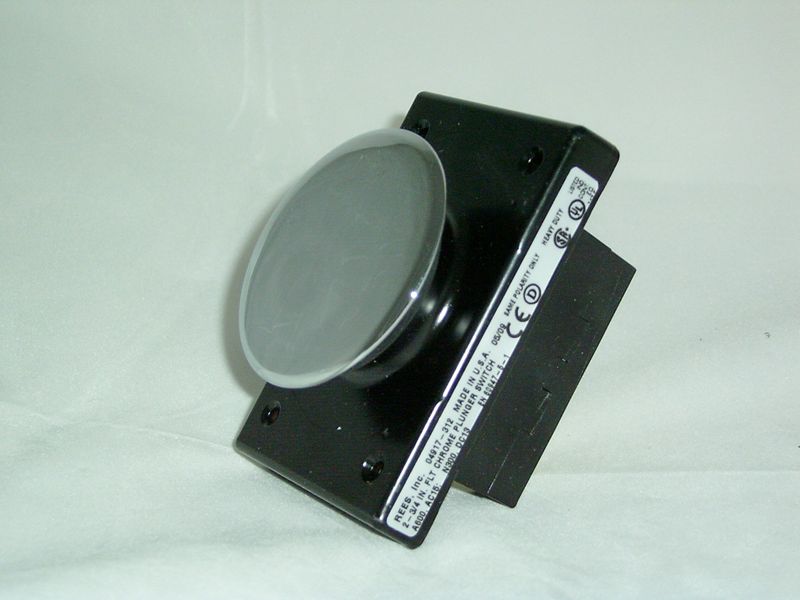

The Flat Chrome Plunger Push Button Switches is a hand-operated control circuit device that is rated 'Heavy Duty', designed primarily for use with electromagnetic equipment It features a black cover that is painted with dry powder paint, and the chrome-plated plunger is made from durable die-cast zinc The switch is equipped with an auxiliary rubber boot under the plunger head, ensuring enhanced operation and reliability.

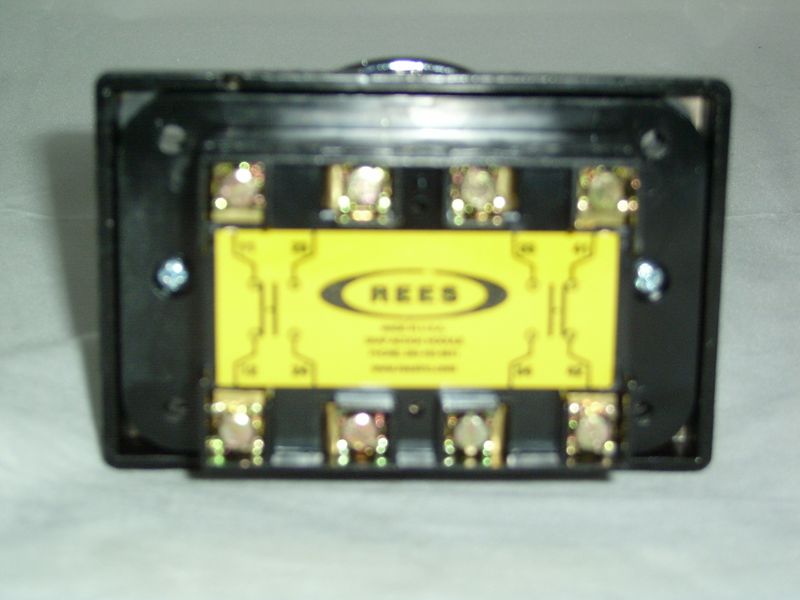

It includes gold-plated contacts that prevent high resistance tarnishing, making it suitable for rugged applications With a Nema 12/13 rating and IP 65 protection, this switch is designed to withstand various environmental conditions, delivering consistent performance in demanding settings Moreover, each captive terminal is capable of accepting two #14 AWG stranded wires, streamlining installation while maintaining robust electrical connectivity.

Features and Benefits:

    •Heavy duty construction suitable for electromagnetic equipment.

    •Gold plated contacts to prevent high resistance tarnishing.

    •Nema 12/13 and IP 65 rated for durability.

    •Auxiliary rubber boot for enhanced operation.

    •Capable of accepting two #14 AWG stranded wires per terminal.

Specifications:

 Plunger Color Chrome
 Cover Color Black Dry Powder Paint
 Operating Force 3.7 lb

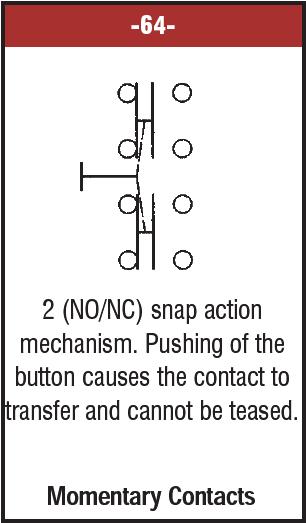

 Contact Arrangement #64 2 NO + 2 NC
 Contact Type Snap-Action
 Operating Type Momentary
