04917-012 Flat Chrome Plunger Push Button Switches

04917-012 Flat Chrome Plunger Push Button Switches

SKU: 04917012   Download PDF

Qty:
Now $578.00   Web pricing policy
BEFORE   Now $578.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The Flat Chrome Plunger Push Button Switch is a hand-operated control circuit device It is rated as ‘Heavy Duty’ and is typically used with electromagnetic equipment The switch features a black cover painted with dry powder paint and a chrome-plated plunger made from die-cast zinc It includes gold-plated contacts that help to eliminate high resistance tarnishing and conforms to Nema 12/13, IP 65 standards.

Each captive terminal can accommodate (2) #14 AWG stranded wires and comes with all necessary mounting hardware.

Features and Benefits:

    •Made from durable die-cast zinc.

    •Gold plated contacts prevent tarnishing.

    •Nema 12/13 and IP 65 rated for protection against dust and water.

    •Captive terminals accept 2 #14 AWG stranded wires.

    •Includes all necessary mounting hardware.

Specifications:

 Cover Color Black Dry Powder Paint

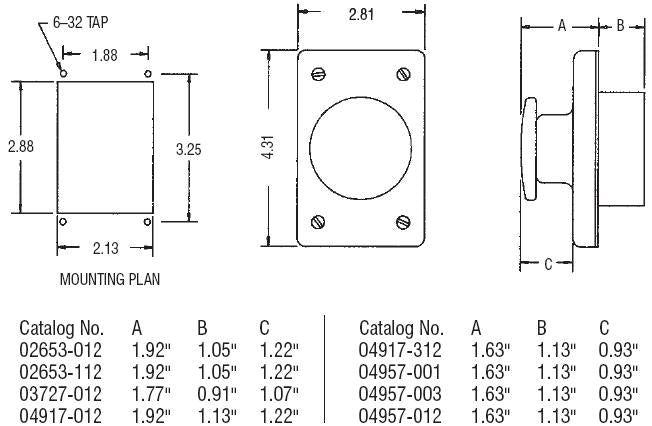

 Plunger Diameter 2.25"
 Operating Force 3.7 lb

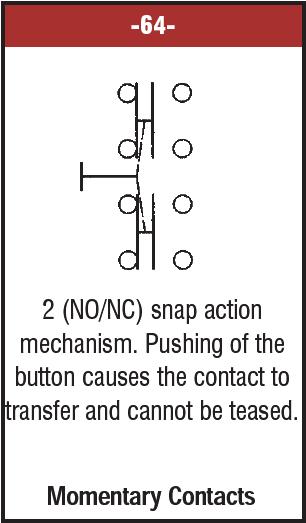

 Contact Arrangement #64 2 NO + 2 NC
 Contact Type Snap-Action
 Operating Type Momentary
