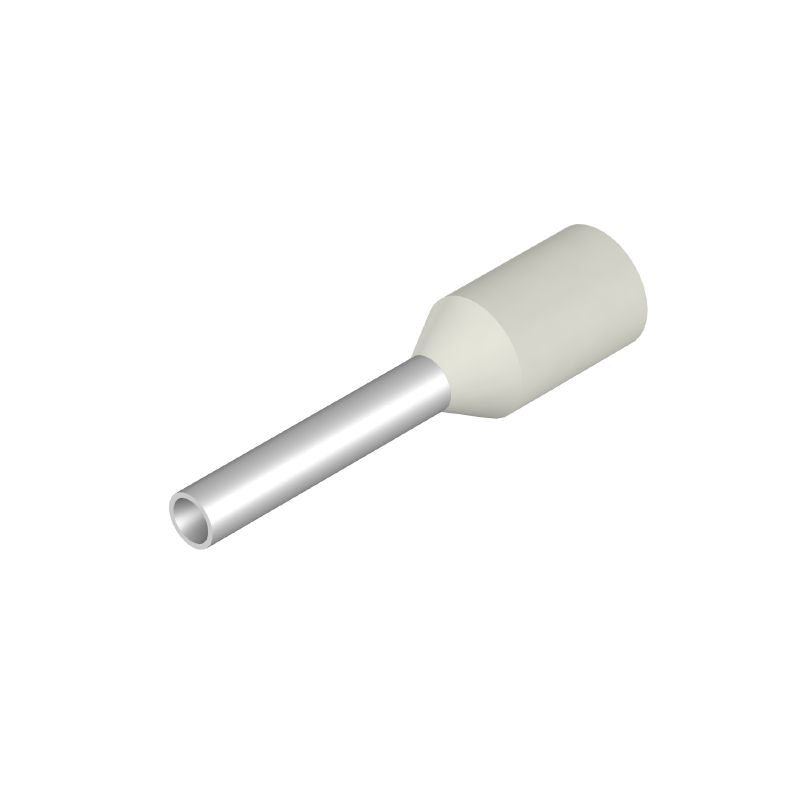

0462900000 - White Wire-End Ferrules, 0.75mm², 2.8mm Collar Diameter (Pack of 500)
0462900000 - White Wire-End Ferrules, 0.75mm², 2.8mm Collar Diameter (Pack of 500)
SKU: SKU: 0462900000 Download PDF
Select a Variant:
- 0462900000 - White Wire-End Ferrules, 0.75mm², 2.8mm Collar Diameter (Pack of 500)
- 0462900000 - White Wire-End Ferrules, 0.75mm², 2.8mm Collar Diameter (Pack of 500)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
These wire-end ferrules, featuring a plastic collar, are presented in a clean white hue and are categorized as standard They are specifically engineered for conductors with a cross-section of 075 mm² and have a collar diameter measuring 28 mm, ensuring a reliable and secure connection for your electrical projects.
Features and Benefits:
•Compliant with RoHS without exemption.
•Loose packaging.
•Wire connection cross section with a maximum of AWG 18.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 8 mm |
| Length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Conductor cross-section | 0.75 mm² |
| UL File Number | E499744 |
| GTIN (EAN) | 4008190033248 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
