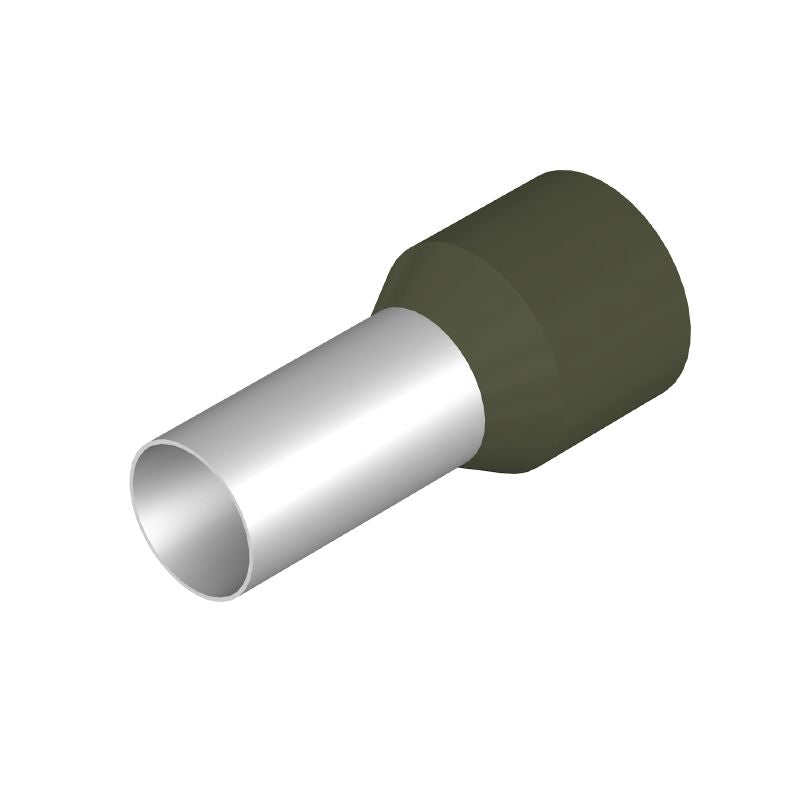

0444200000 - 36mm Olive Green Wire End Ferrule with Plastic Collar (Pack of 50)
0444200000 - 36mm Olive Green Wire End Ferrule with Plastic Collar (Pack of 50)
SKU: SKU: 0444200000 Download PDF
- 0444200000 - 36mm Olive Green Wire End Ferrule with Plastic Collar (Pack of 50)
- 0444200000 - 36mm Olive Green Wire End Ferrule with Plastic Collar (Pack of 50)
Couldn't load pickup availability
Description:
Introducing our versatile wire end ferrule, featuring a durable plastic collar in a rich olive green hue This standard-sized ferrule measures 36mm and is designed for easy attachment to various wires with a stripping length of 26mm Engineered to meet RoHS standards, it is ideally suited for connections involving conductors with a cross-section of 50mm², ensuring both safety and functionality in your wiring needs.
Features and Benefits:
•Conductor cross-section of 50mm².
•Wire connection cross section of AWG 1.
•RoHS compliant without any exemptions.
•Comes in olive green color.
•Standard version with plastic collar.
Specifications:
| Collar diameter (D2) | 15 mm |
| Contact surface diameter (D1) | 10.3 mm |
| Contact surface length (L2) | 20 mm |
| L1 in mm | 36 mm |
| Metal sleeve thickness (S1) | 0.3 mm |
| Plastic collar thickness (S2) | 0.5 mm |
| Stripping length | 26 mm |
| GTIN (EAN) | 4008190110284 |
| Packaging | loose |
| UL File Number | E499744 |
| ETIM Classifications | {'ETIM 6.0': 'EC000005', 'ETIM 7.0': 'EC000005', 'ETIM 8.0': 'EC000005', 'ETIM 9.0': 'EC000005', 'ETIM 10.0': 'EC000005'} |
| ECLASS Classifications | {'ECLASS 9.0': '27-40-02-01', 'ECLASS 9.1': '27-40-02-01', 'ECLASS 10.0': '27-40-02-01', 'ECLASS 11.0': '27-40-02-01', 'ECLASS 12.0': '27-40-02-01', 'ECLASS 13.0': '27-40-02-01', 'ECLASS 14.0': '27-40-02-01', 'ECLASS 15.0': '27-40-02-01'} |
