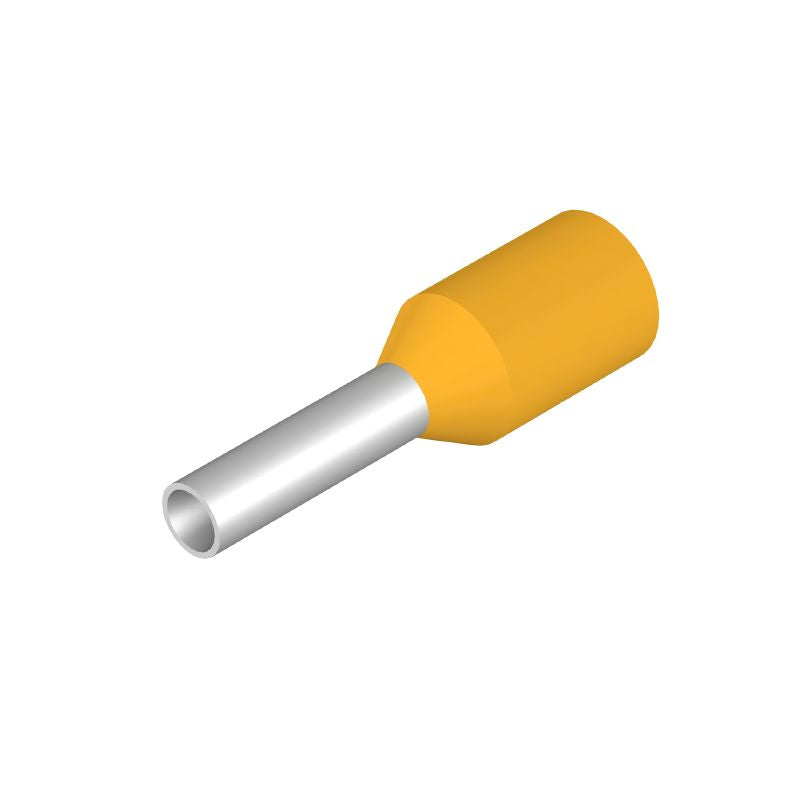

0409700000 - Yellow 8mm Wire Ferrule with Plastic Collar, 1mm² Compatible (Pack of 500)
0409700000 - Yellow 8mm Wire Ferrule with Plastic Collar, 1mm² Compatible (Pack of 500)
SKU: SKU: 0409700000 Download PDF
- 0409700000 - Yellow 8mm Wire Ferrule with Plastic Collar, 1mm² Compatible (Pack of 500)
- 0409700000 - Yellow 8mm Wire Ferrule with Plastic Collar, 1mm² Compatible (Pack of 500)
Couldn't load pickup availability
Description:
Discover this practical wire end ferrule, featuring a vibrant yellow plastic collar Specifically designed for standard conductors with a cross-section of 1 mm², it boasts a collar diameter of 3 mm The contact surface measures 14 mm in diameter and extends 6 mm in length, while the metal sleeve has a thickness of 015 mm, complemented by a plastic collar thickness of 025 mm It is recommended to strip the wire to a length of 8 mm, and it can support a maximum wire connection cross-section of AWG 17.
This product is supplied loosely and adheres to RoHS regulations without any exceptions, ensuring safety and compliance.
Features and Benefits:
•Wire end ferrule with a plastic collar.
•Compliant with RoHS regulations.
•Loose packaging.
Specifications:
| Collar diameter (D2) | 3 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 6 mm |
| L1 in mm | 12 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 8 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| UL File Number | E499744 |
| GTIN (EAN) | 4008190152222 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
