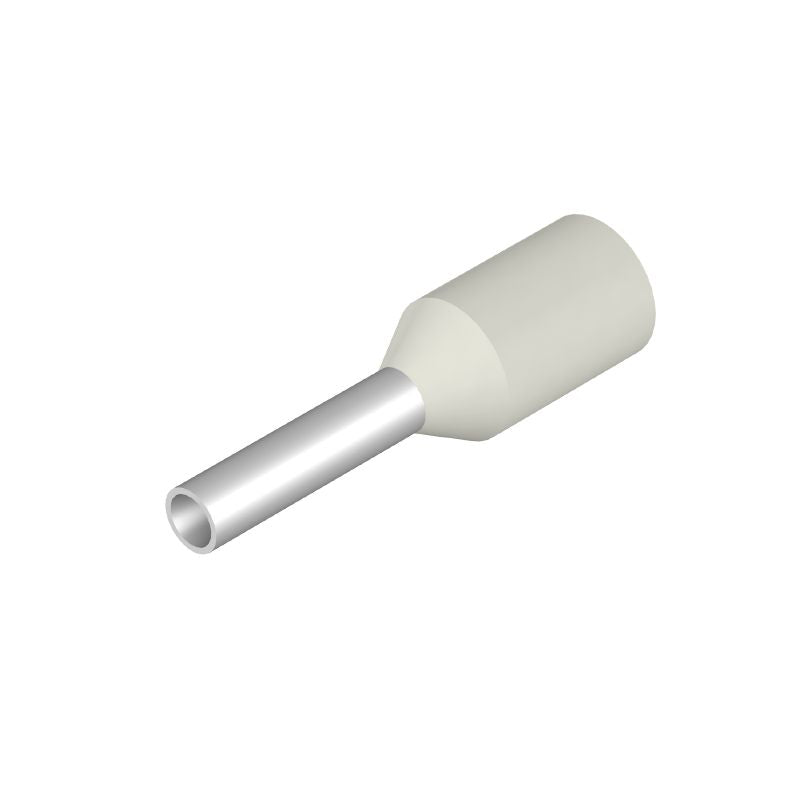

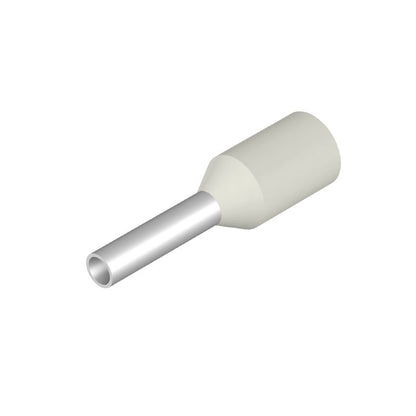

0409600000 - 12mm Wire End Ferrule with 2.8mm Collar, RoHS Compliant (Pack of 500)
0409600000 - 12mm Wire End Ferrule with 2.8mm Collar, RoHS Compliant (Pack of 500)
SKU: SKU: 0409600000 Download PDF
- 0409600000 - 12mm Wire End Ferrule with 2.8mm Collar, RoHS Compliant (Pack of 500)
- 0409600000 - 12mm Wire End Ferrule with 2.8mm Collar, RoHS Compliant (Pack of 500)
Couldn't load pickup availability
Description:
Enhance your wiring projects with these standard wire end ferrules, featuring a crisp white plastic collar Fully compliant with RoHS regulations, these ferrules do not contain any registered SVHC above 01 weight percent Each ferrule has a collar diameter of 28 mm and is tailored for a conductor cross-section of 075 mm² Measuring 12 mm in length, it provides a contact surface diameter of 12 mm and a contact length of 6 mm.
With a stripping length of 8 mm, these ferrules support a maximum wire connection of AWG 18, making them an excellent choice for secure and efficient electrical connections.
Features and Benefits:
•Compliant with RoHS regulations.
•No SVHC above 0.1 wt%.
•Standard version with plastic collar.
•Loose packaging.
•Available in a quantity of 500 items.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 6 mm |
| Length (L1) | 12 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 8 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
