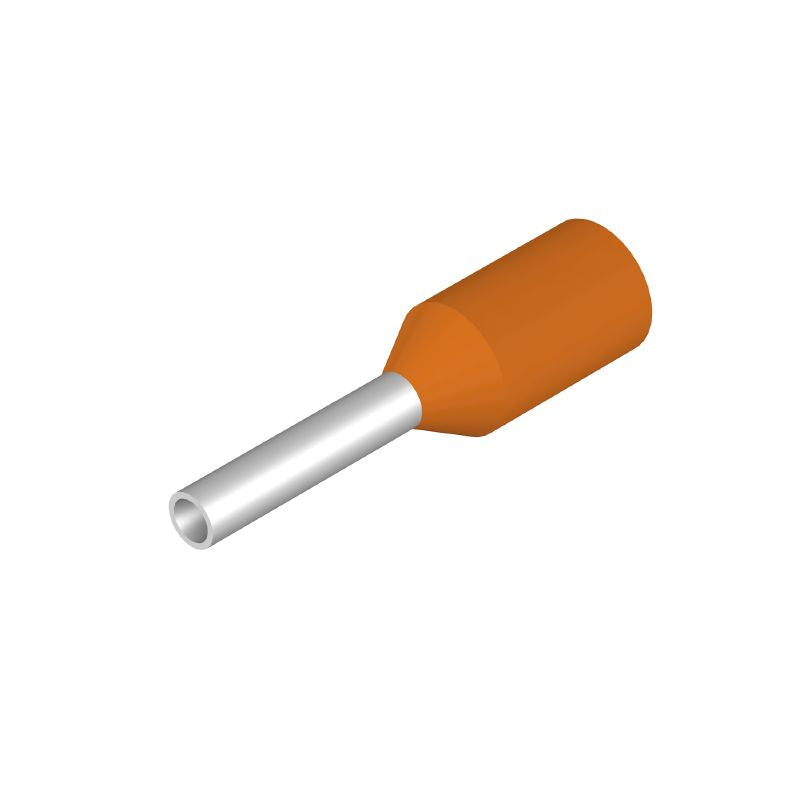

0409500000 - Orange 12mm Wire-End Ferrule with 2.6mm Collar, Pack of 500 (Pack of 500)
0409500000 - Orange 12mm Wire-End Ferrule with 2.6mm Collar, Pack of 500 (Pack of 500)
SKU: SKU: 0409500000 Download PDF
- 0409500000 - Orange 12mm Wire-End Ferrule with 2.6mm Collar, Pack of 500 (Pack of 500)
- 0409500000 - Orange 12mm Wire-End Ferrule with 2.6mm Collar, Pack of 500 (Pack of 500)
Couldn't load pickup availability
Description:
Optimize your electrical connections with these vibrant orange wire end ferrules featuring a durable plastic collar These standard ferrules are suitable for conductor cross-sections of 05 mm², offering a collar diameter of 26 mm The contact area measures 1 mm in diameter and stretches 6 mm in length, while the total length of each ferrule is 12 mm Adhering to RoHS guidelines, these ferrules are free from any SVHC substances exceeding 0.
1 weight percent Conveniently packaged, you will receive 500 loose pieces, making them an excellent choice for your wiring needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC present above 0.1 wt%.
•Packaged in quantities of 500 loose items.
Specifications:
| Collar diameter (D2) | 2.6 mm |
| Conductor cross-section | 0.5 mm² |
| Contact surface diameter (D1) | 1 mm |
| Contact surface length (L2) | 6 mm |
| Length (L1) | 12 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 8 mm |
| Wire connection cross section AWG, max. | AWG 20 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
