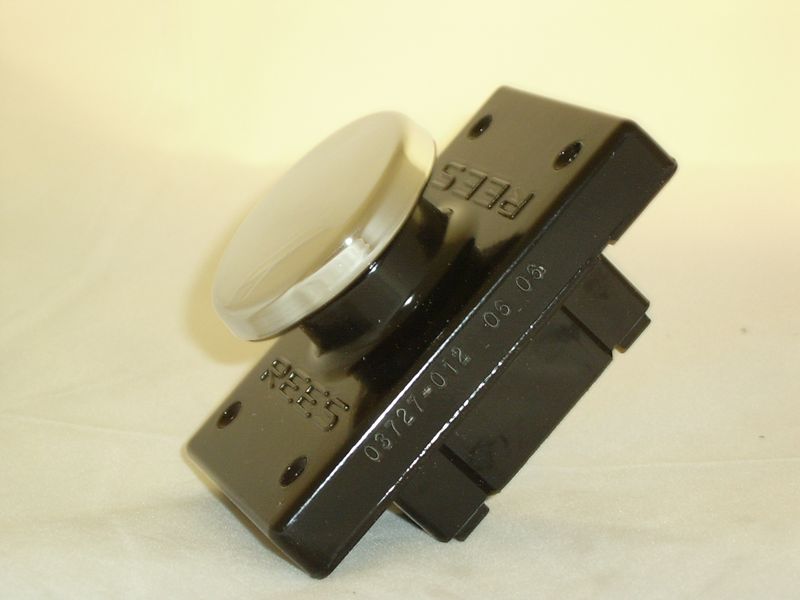

03727-012 Flat Chrome Plunger Push Button Switches

03727-012 Flat Chrome Plunger Push Button Switches

SKU: 03727012   Download PDF

Qty:
Now $363.56   Web pricing policy
BEFORE   Now $363.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The Flat Chrome Plunger Push Button Switches is a hand-operated control circuit device rated as 'Heavy Duty', typically used with electromagnetic equipment It features a black cover painted with dry powder paint and a chrome-plated plunger, both made from die-cast zinc Gold-plated contacts are designed to eliminate high resistance tarnishing, meeting Nema 12/13 and IP 65 standards Each captive terminal accommodates (2) #14 AWG stranded wires and comes with all necessary mounting hardware.

Features and Benefits:

    •Heavy Duty rating for use with electromagnetic equipment.

    •Die-cast zinc construction for durability.

    •Gold plated contacts for reduced tarnishing.

    •Nema 12/13, IP 65 rated for environmental protection.

    •Each terminal accepts (2) #14 AWG wires.

    •Includes all mounting hardware.

Specifications:

 Plunger Color Chrome
 Cover Color Black Dry Powder Paint
 Operating Force 3.3 lb

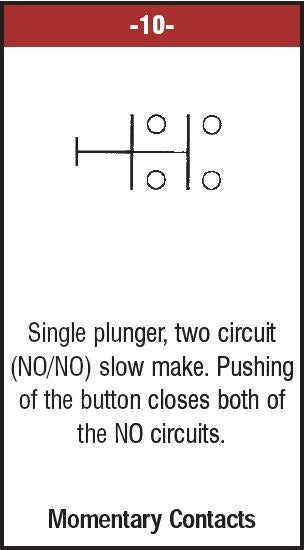

 Contact Arrangement #10 NO + NO
 Contact Type Slow-Make
 Operating Type Momentary
 Approx. Shipping Weight 1.29 lb
