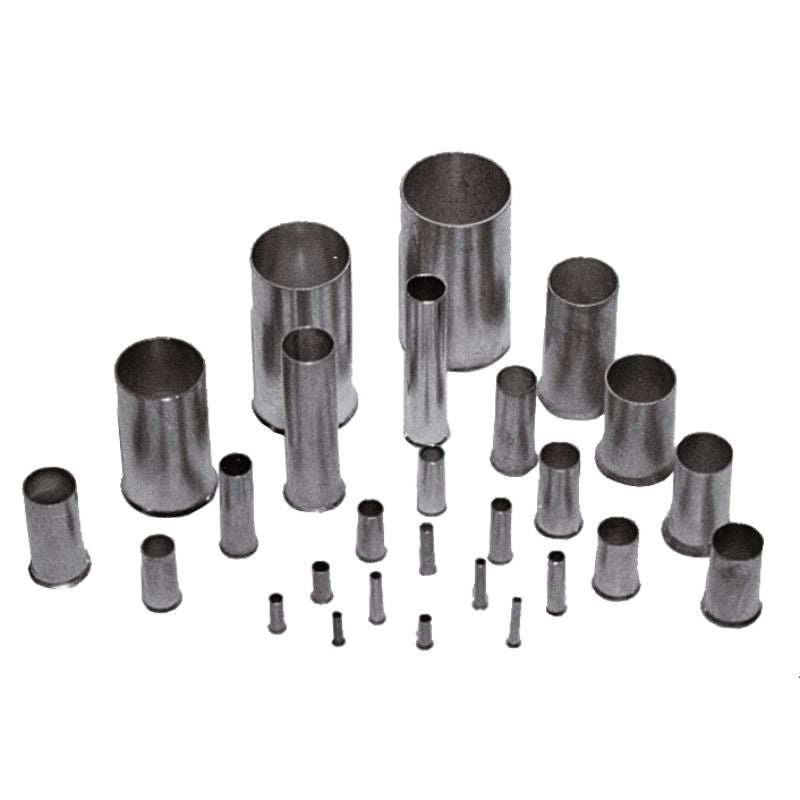

0368900000 - 35mm² Wire Ferrule, 11mm Collar, No Plastic Cover (Pack of 100)
0368900000 - 35mm² Wire Ferrule, 11mm Collar, No Plastic Cover (Pack of 100)
SKU: SKU: 0368900000 Download PDF
- 0368900000 - 35mm² Wire Ferrule, 11mm Collar, No Plastic Cover (Pack of 100)
- 0368900000 - 35mm² Wire Ferrule, 11mm Collar, No Plastic Cover (Pack of 100)
Couldn't load pickup availability
Description:
This wire end ferrule is engineered for a variety of electrical uses, featuring a streamlined design without a plastic collar With a collar diameter of 11 mm, it effortlessly fits conductors with a cross-section of up to 35 mm² The contact surface has a diameter of 83 mm and a length of 18 mm, matching the specified stripping length of 18 mm as well It can accommodate wire connections with a maximum of AWG 2, making it a versatile choice for your electrical applications.
Features and Benefits:
•Standard wire end ferrule without plastic collar.
•Collar diameter of 11 mm.
•Conductor cross-section of 35 mm².
•Contact surface diameter of 8.3 mm.
•Contact surface length of 18 mm.
•Stripping length of 18 mm.
•Supports a maximum wire connection cross section of AWG 2.
Specifications:

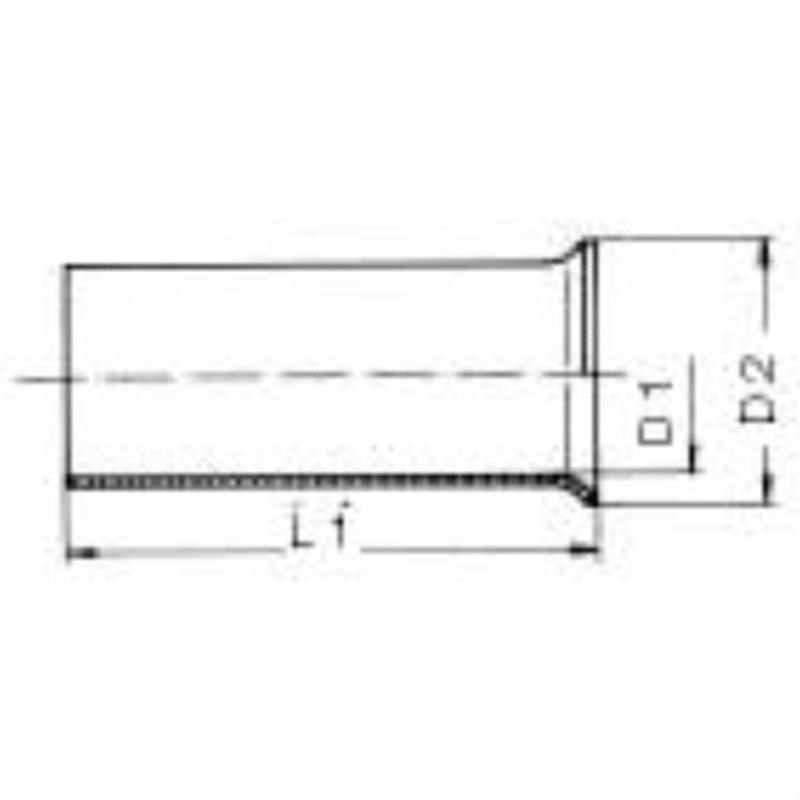

| Description of article | Wire end ferrule without plastic collar |
| Version | Standard |
| Collar diameter (D2) | 11 mm |
| Conductor cross-section | 35 mm² |
| Contact surface diameter (D1) | 8.3 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 18 mm |
| Stripping length | 18 mm |
| Wire connection cross section AWG, max. | AWG 2 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
