03605-132 1.00 inch and 1.75 inch Double Plastic Plunger

03605-132 1.00 inch and 1.75 inch Double Plastic Plunger

SKU: 03605132 Download PDF

Now $641.50
BEFORE   Now $641.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

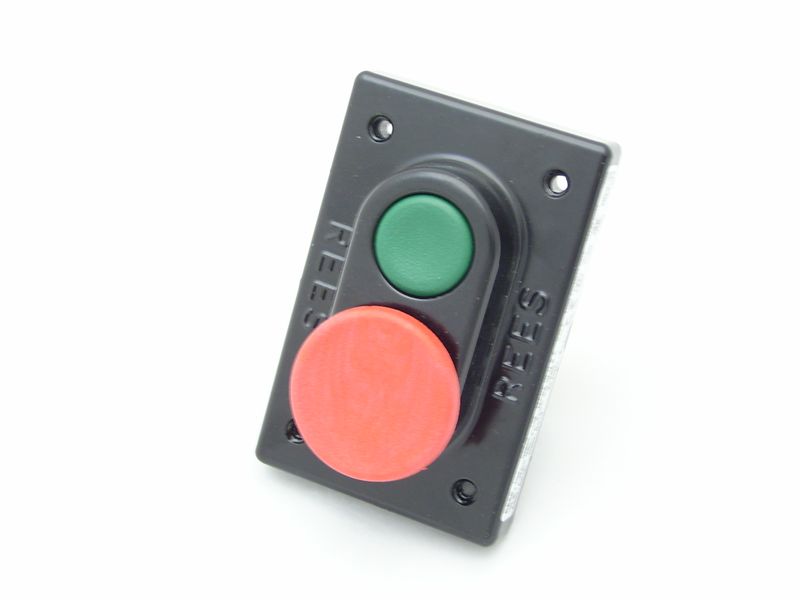

The 100 inch and 175 inch Double Plastic Plunger is a hand-operated control circuit device rated as 'Heavy Duty' for use with electromagnetic equipment It features a black cover made from die-cast zinc and painted with dry powder paint The plungers, available in red and green, are made from DuPont Delrin 100ST Acetal, which provides improved impact resistance These plungers are solid colors throughout and include gold plated contacts to eliminate high resistance tarnishing.

It meets Nema 12/13 and IP 65 standards.

Features and Benefits:

    •Die-cast zinc black cover with dry powder paint.

    •Red and green plastic plungers made from DuPont Delrin 100ST Acetal.

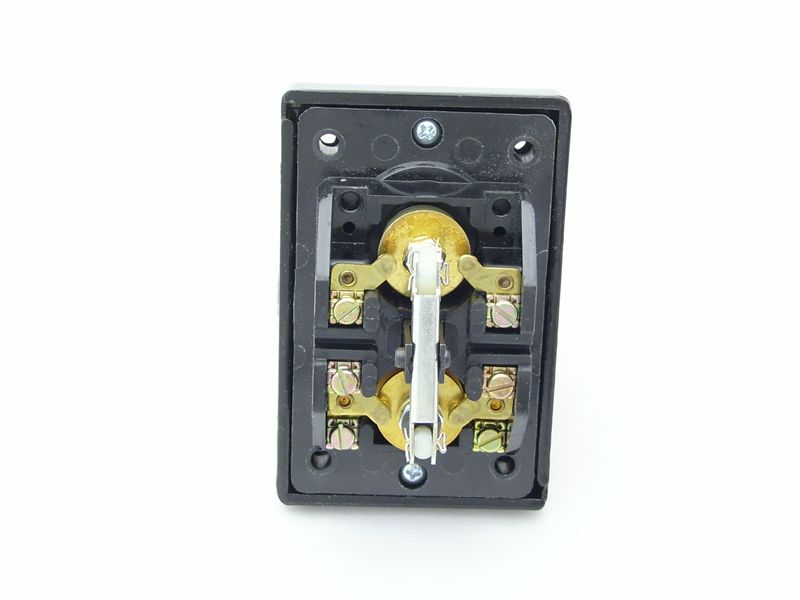

    •Gold plated contacts to prevent tarnishing.

    •Rated 'Heavy Duty' for electromagnetic equipment use.

    •Meets Nema 12/13 and IP 65 standards.

Specifications:

 1.00" Plunger Color Green
 1.75" Plunger Color Red
 Cover Color Black

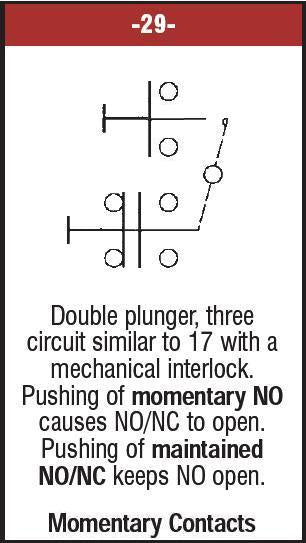

 Contact Arrangement #29 NO + NO + NC
 Contact Type Slow-Make Slow-Break
 Operation NO - Momentary, NO + NC - Maintained
 Old Catalog Number 3605
