03496-000 Rotary Contact Selector Switches

Description:

The rotary contact selector switch is a hand-operated device rated for 'Heavy Duty' applications, designed for use with electromagnetic equipment Constructed with a die-cast zinc body and painted with a dry powder coating, the switch features a wing lever for ease of operation Each captive terminal can accept two #14 AWG stranded wires The switch comes with all necessary mounting hardware and a solid santoprene rubber gasket that ensures an oil-tight seal once installed.

Features and Benefits:

•Heavy Duty rating for use with electromagnetic equipment.

•Die-cast zinc construction for durability.

•Captive terminals accept (2) #14 AWG stranded wires.

•Includes all mounting hardware.

•Solid santoprene rubber gasket provides an oil-tight seal.

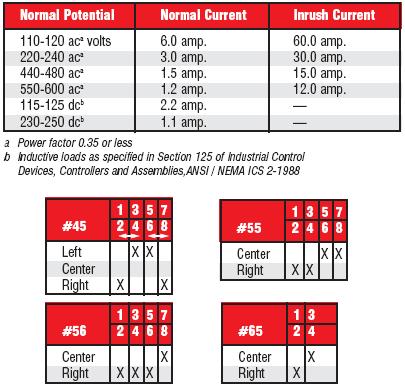

Specifications:
