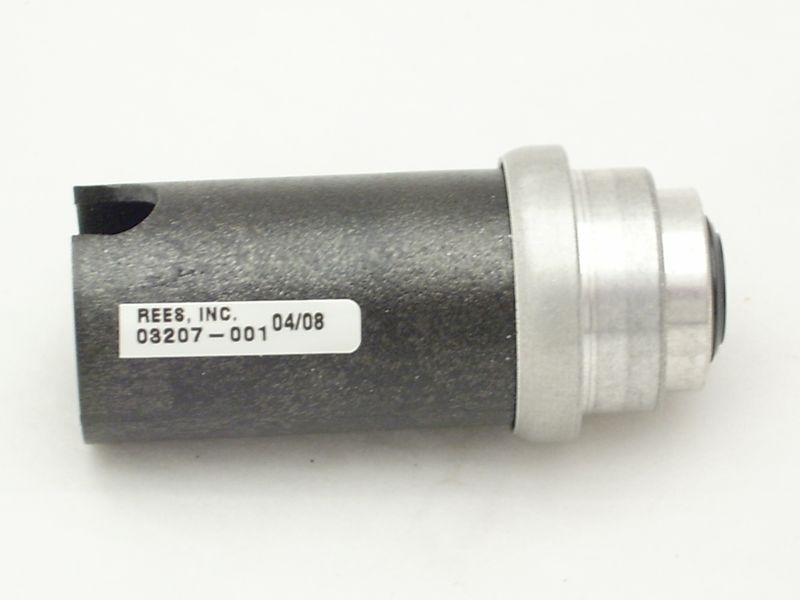

03207-001 Cylindrical Push Button
03207-001 Cylindrical Push Button
SKU: SKU: 03207001
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This is a hand operated, control circuit device, rated ‘Standard Duty’ The switch features a black plastic plunger and outer shell made from Lexan It has a slow make – slow break momentary contact, Nema 12/13, IP 65 rating, and an additional rubber diaphragm on the plunger The mechanical life of the switch is rated for 500,000 operations.
Features and Benefits:
•Slow Make – Slow Break Momentary Contact.
•Nema 12/13, IP 65.
•Additional Rubber Diaphragm on Plunger.
•Mechanical life of 500,000 operations.
Specifications:
| Plunger Size Material | 1.00" Plastic |
| Plunger Color | Black |
| Outer Shell O.D./Material | 1.25" Plastic |
| Cord Grip | No |
| Contact Arrangement | #63 NO |
| Approx. Operating Force | 2.8 lb |
| CSA | Yes |
| Old Catalog Number | 3207 |
