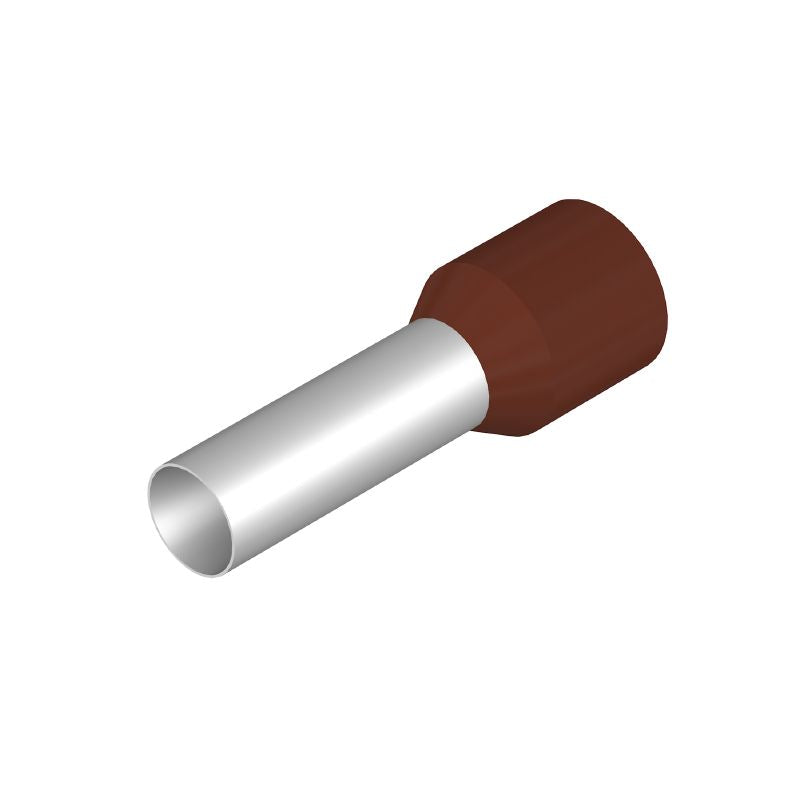

0317100000 - Brown Wire End Ferrule with Plastic Collar (Pack of 50)
0317100000 - Brown Wire End Ferrule with Plastic Collar (Pack of 50)
SKU: SKU: 0317100000 Download PDF
Select a Variant:
- 0317100000 - Brown Wire End Ferrule with Plastic Collar (Pack of 50)
- 0317100000 - Brown Wire End Ferrule with Plastic Collar (Pack of 50)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Upgrade your wiring solutions with this brown wire end ferrule featuring a sturdy plastic collar Identified by the part number H25,0/36 BR, this standard version ferrule is versatile and accommodates various conductor sizes, making it a practical choice for your electrical applications.
Features and Benefits:
•Wire end ferrule with plastic collar.
•Compliant with RoHS without exemption.
•Packaging is loose.
•Available in brown color.
Specifications:
| Collar diameter (D2) | 11.2 mm |
| Conductor cross-section | 25 mm² |
| Contact surface diameter (D1) | 7.3 mm |
| Contact surface length (L2) | 22 mm |
| L1 in mm | 36 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 24 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
