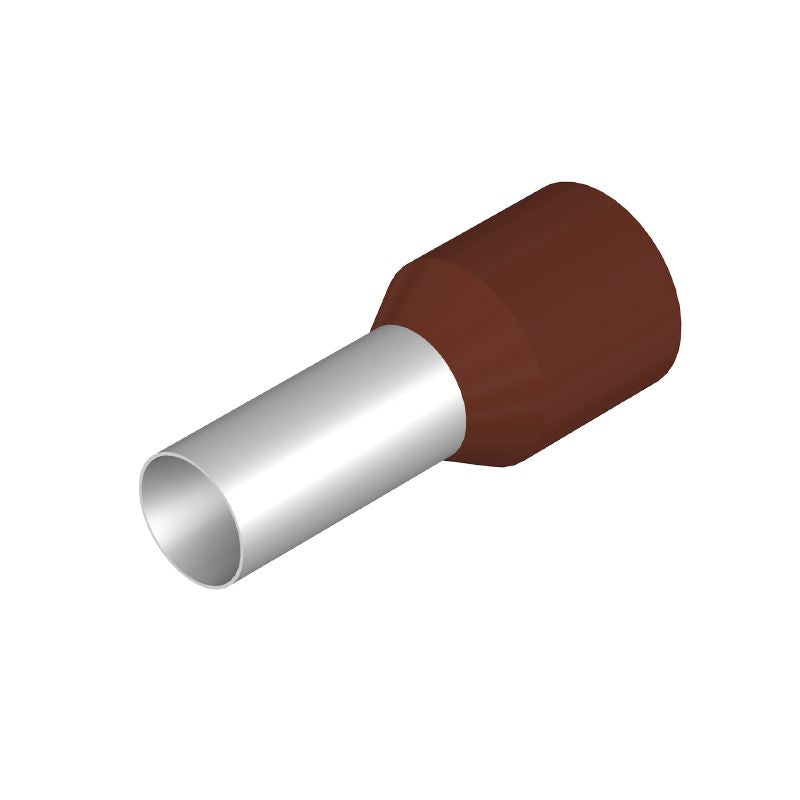

0317000000 - Brown Wire-end Ferrule, RoHS Compliant, 18mm & 16mm (Pack of 50)
0317000000 - Brown Wire-end Ferrule, RoHS Compliant, 18mm & 16mm (Pack of 50)
SKU: SKU: 0317000000 Download PDF
- 0317000000 - Brown Wire-end Ferrule, RoHS Compliant, 18mm & 16mm (Pack of 50)
- 0317000000 - Brown Wire-end Ferrule, RoHS Compliant, 18mm & 16mm (Pack of 50)
Couldn't load pickup availability
Description:
Introducing the H25,0/30 BR wire end ferrule, a dependable component designed for optimal wire connections Featuring a robust plastic collar and a rich brown color, this standard model is compatible with various dimensions Adhering to RoHS compliance in full, it’s an excellent choice for any electrical applications requiring secure wire terminations.
Features and Benefits:
•Compliant with RoHS regulations.
•Supplied in loose packaging.
•Suitable for conductor cross-section up to 25 mm².
•Frequent use in standard wire connection applications.
•Collar design enhances grip and conductivity.
Specifications:
| Collar diameter (D2) | 11.2 mm |
| Contact surface diameter (D1) | 7.3 mm |
| Contact surface length (L2) | 16 mm |
| L1 in mm | 30 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 18 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| GTIN (EAN) | 4008190158231 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
