02765-100 Standard and Large Enclosures

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

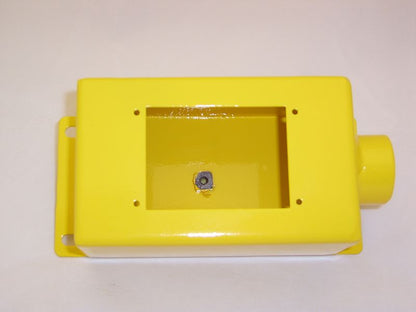

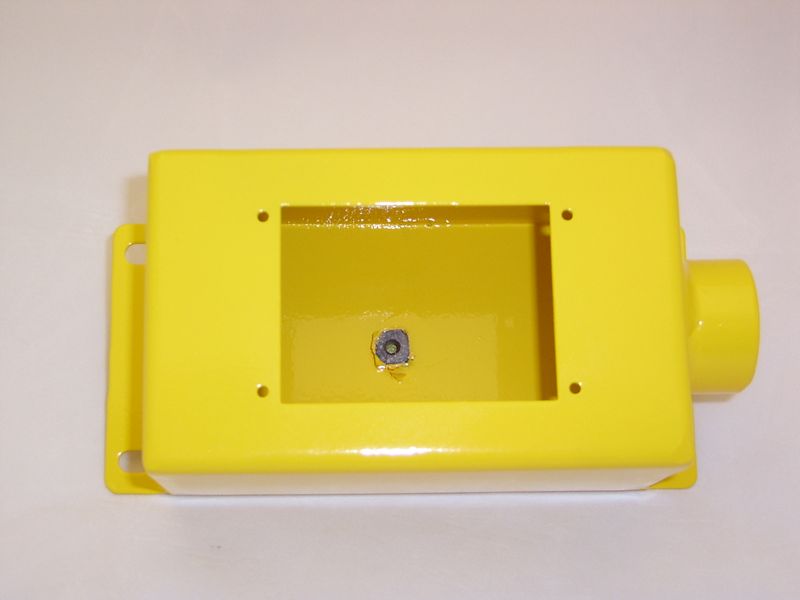

The enclosures are made from 14 GA sheet steel painted with a dry powder paint The first group will accept all standard size REES push button switches The second group (the 04938-’s) are designed to fit the larger style switches from page 18 The 02765-100 one opening, painted yellow, is suitable for holding an “Emergency Stop” switch These enclosures can be used to house any switch that has the same mounting pattern.

These enclosures are rated Nema 12/13.

Features and Benefits:

•Constructed from 14 GA. sheet steel.

•Painted with a dry powder paint.

•Accepted for all standard size REES push button switches.

•Rated Nema 12/13.

•Suitable for holding an 'Emergency Stop' switch.

•Houses any switch with the same mounting pattern.

Specifications:
