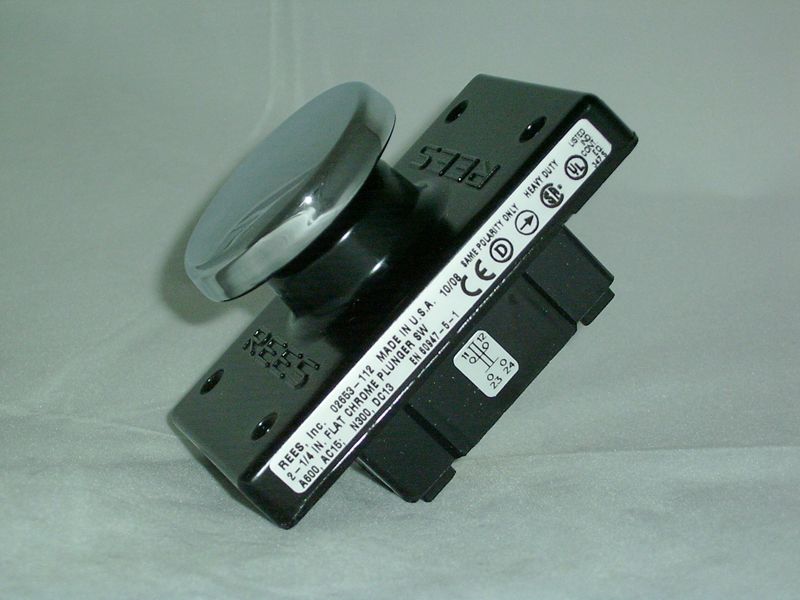

02653-112 Flat Chrome Plunger Push Button Switches

02653-112 Flat Chrome Plunger Push Button Switches

SKU: 02653112   Download PDF

Qty:
Now $278.62   Web pricing policy
BEFORE   Now $278.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The Flat Chrome Plunger Push Button Switches are hand-operated control circuit devices rated ‘Heavy Duty’ for use with electromagnetic equipment They feature a black cover painted with dry powder paint and a chrome-plated plunger made from die-cast zinc The gold plated contacts are designed to eliminate high resistance tarnishing and are compliant with Nema 12/13, IP 65 standards Each captive terminal accepts two #14 AWG stranded wires, and the switches come supplied with all mounting hardware.

Features and Benefits:

    •Hand-operated control circuit device rated for electromagnetic equipment.

    •Die-cast zinc construction with chrome plated plunger.

    •Gold plated contacts to eliminate high resistance tarnishing.

    •Nema 12/13, IP 65 compliant.

    •Each captive terminal accepts two #14 AWG stranded wires.

    •Supplied with all mounting hardware.

Specifications:

 Plunger Color Chrome
 Cover Color Black Dry Powder Paint
 Operating Force 2.5 lb
 Contact Arrangement #09 NO + NC
 Contact Type Slow-Make
 Operating Type Momentary
 Approx. Shipping Weight 1.30 lb
